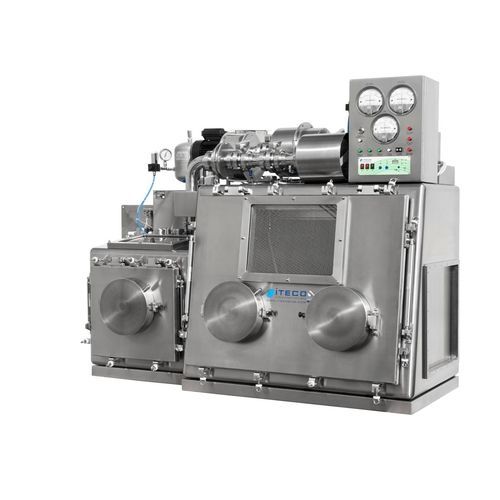

Hazardous materials glove box NBCR N

containmentfor biocontainmentfloor-standing

NBCR N is a shielded glove box designed for protected handling of hazardous or sensitive samples. It combines a monolithic AISI 316L stainless steel shelter with lead shielding, a shielded sample introduction airlock, advanced filtration and integrated decontamination devices.

• Monolithic AISI 316L stainless steel structure with 3 mm lead (Pb) shielding.
• Shielded sample introduction airlock with front panel hinged upward, glove flange protected by shielded viewport, external door with pneumatic interlock and top panel with lead glass observation window.
• Front panel hinged upward with lead glass viewport; 2 stainless steel glove flanges protected by shielded viewports and 2 shielded gloves.
• Double filter unit: HEPA 14 and ULPA 15.
• Elastic connection between shelter wall and sample introduction airlock via flexible joint applied to the pass-through opening; airlock with hinged, pneumatically interlocked door.
• Integrated decontamination system.

Characteristics / technical specifications

• Material: AISI 316L stainless steel.
• Shielding: 3 mm lead (Pb).
• Filtration: double filter unit HEPA 14 + ULPA 15.
• Gloves/Flanges: 2 stainless steel glove flanges, 2 shielded gloves (protected by shielded viewports).
• Overall dimensions: 1650 x 650 x 850 mm (h).
• Weight: approximately 500 kg.
