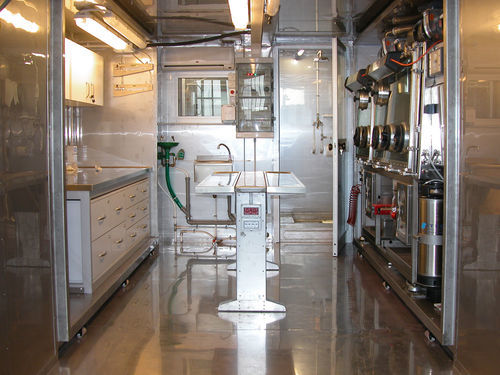

Portable laboratory for research applications Lab Mobile NBCR

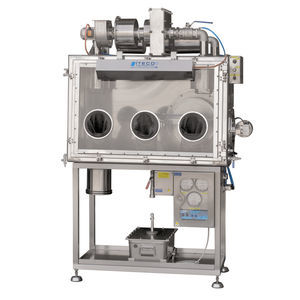

Mobile NBCR laboratory with a glove box divided into two independent sections for material intake and analysis, designed for safe operations with filtration systems, integrated autoclave and decontamination devices.

Main features

• Material intake section and analysis section with dedicated autoclave chamber; sections communicate via ports with pneumatic interlock doors.
• Monolithic structure in AISI 316L stainless steel sheet.
• External sliding hatch on the container for access to the glove box port for sample introduction.
• Dual absolute H14 and activated carbon filtration units.
• Front panels in safety glass.
• 7 flanges, 5 gloves, 2 flange blanking caps, 2 lighting units.
• Control panel for each section.

Functionality and systems

• Stainless steel polished pass-through chamber for material introduction with vertical internal sliding hatch; external hinged hatch openable only from outside.
• Safety interlocks for all hatches.
• Mobile tray in the pass-through chamber for transfer of introduced materials.
• Watertight UV lamps in each section.
• Integrated decontamination system.
• Liquid waste discharge system with dedicated tank.
• Solid waste discharge system with safety bag locking and heat sealer.
• Pneumatically actuated interlocked doors.
• LEL sensor and oxygen control sensor.
• Probes for temperature and humidity monitoring.
• Autoclave integrated into the system.

Operational details and accessories

• Autoclave chamber dimensions: 600 x 520 x 450 mm (h).
• Power outlets and fluid pass-throughs in each section.
• Dedicated compressor.
• Perforated grid for each section.
• Anti-vibration support for balance and small item trays.
• Glove box dimensions: (800+1300) x 700 x 1860 mm; approximate total weight ~700 kg.

Technical characteristics / specifications

• Structure material: AISI 316L stainless steel.
• Configuration: 2 independent units (material intake section + analysis section) with pneumatic interlocked hatches.
• Filtration: dual H14 absolute filter set + activated carbon filter.
• Autoclave chamber: 600 x 520 x 450 mm (h).
• Glove box dimensions: (800+1300) x 700 x 1860 mm.
• Indicative weight: ~700 kg.
• Passive equipment: 7 flanges, 5 gloves, 2 flange caps, 2 lighting units, watertight UV lamps.
• Safety and monitoring systems: safety interlocks, LEL sensor, oxygen control sensor, temperature/humidity probes.
• Waste management systems: liquid waste discharge with dedicated tank; solid waste discharge with bag locking and heat sealer.
• Power and services: power outlets and fluid pass-throughs in each section; dedicated compressor.
• Accessories: control panel for each section, anti-vibration support for balance, perforated grid and small item trays.
