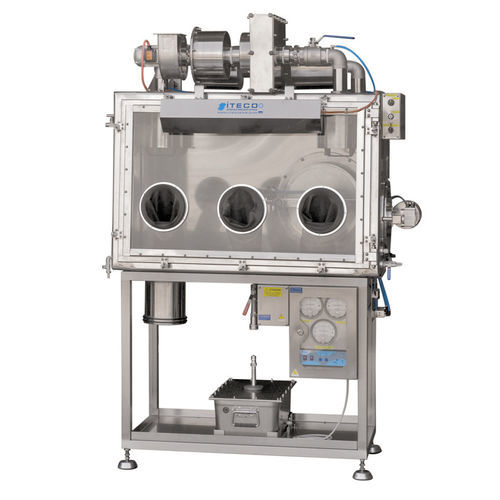

Laboratory glove box

floor-standingstainless steel

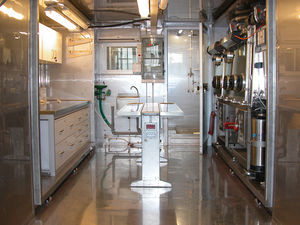

The Lab Mobile NBCR con GB is a mobile NBCR laboratory equipped with a glove box designed for secure sample handling and decontamination in controlled environments. Built to provide isolation, absolute filtration and integrated environmental control.

Features

• Monolithic structure in AISI 316L stainless steel sheet
• Rear wall with pre‑chamber for sample introduction
• Door on the right wall
• Dual absolute filtration units: H14 + ULPA 16 and activated carbon filtration
• Front safety glass with 3 flanges and integrated gloves
• Safety interlocks
• Pre‑chamber equipped with a mobile transfer table for moving introduced materials
• UV lamps
• Decontamination system
• Liquid waste drain with dedicated tank
• Pneumatically actuated interlocked hatches
• LEL (Lower Explosive Limit) sensor
• Oxygen monitoring sensor
• Probes for temperature and humidity detection
• Power outlets and fluid pass‑throughs in every section
• Dedicated compressor
• Elastic connection to container wall and pre‑chamber with elastic joint sealing the passage opening and pre‑chamber

Features / technical specifications

• Commercial name: Lab Mobile NBCR
• Structure material: AISI 316L stainless steel sheet
• Filtration: dual absolute group H14 + ULPA 16 and activated carbon filtration
• Front wall: safety glass with 3 flanges and integrated gloves
• Pre‑chamber: equipped with mobile transfer table for material translation
• Integrated systems: UV lamps, decontamination system, liquid waste drain with dedicated tank, pneumatically interlocked hatches
• Sensors: LEL detection, oxygen control, temperature and humidity probes
• Plant: power outlets and fluid passages in every section, dedicated compressor
• External connection: elastic joint for attachment to container wall and pre‑chamber
• Dimensions (L×W×H): glove box 1200 × 600 × 800 mm; support 1000 × 600 × 900 mm; total footprint 1450 × 1000 × 2100 mm
• Weight: approx. 280 kg
