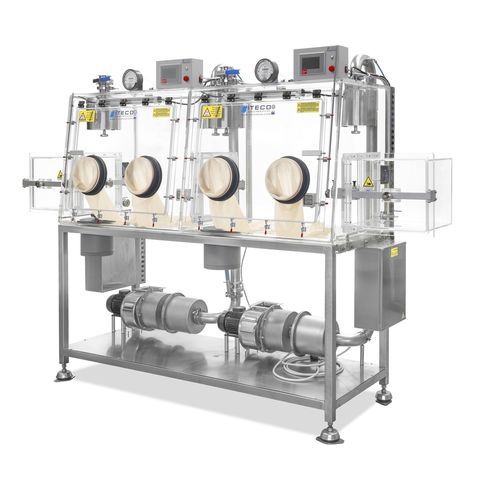

Laboratory glove box SGS204 HBR
for biocontainmentcontainmentfor toxic products

Laboratory glove box - SGS204 HBR - ITECO Engineering Italy - for biocontainment / containment / for toxic products
Laboratory glove box - SGS204 HBR - ITECO Engineering Italy - for biocontainment / containment / for toxic products
Laboratory glove box - SGS204 HBR - ITECO Engineering Italy - for biocontainment / containment / for toxic products - image - 2
Add to favorites
Compare this product
Go to the ITECO Engineering Italy website for more information

Characteristics

Applications
laboratory, for biocontainment, containment
Type of products handled
for toxic products, for radioactive products, for biological products
Configuration
modular
Lighting
with UV light, with LED light
Other characteristics
stainless steel, with HEPA filter, acrylic
Window opening

Max.: 70 cm
(27.56 in)

Min.: 55 cm
(21.65 in)

External width

180 cm
(70.87 in)

External depth

65 cm
(25.59 in)

External height

75 cm
(29.53 in)

Weight

310 kg
(683.43 lb)

Description

Overview
  • Modular glove box system designed for NBCR laboratories, composed of communicating modules with controlled-access points and filtration for controlled environments.
  • Intended for containment and controlled handling operations; includes two work chambers equipped with gloves, ante-rooms and a technical support compartment.


Details
  • The system consists of two communicating modules with a central hatch.
  • Structure in PMMA with inclined front walls.
  • Left ante-room with prismatic section and double door; internal useful pass-through 300 x 300 mm.
  • First work chamber equipped with gloves.
  • Second work chamber equipped with gloves.
  • Right ante-room with prismatic section.
  • Support / technical compartment for the glove box.
  • Work chamber walls open upwards; usable opening 700 mm (L) x 550 mm (H).
  • Filtration system with dual absolute HEPA 14 filters (with leak-test port).
  • Sealed internal power outlet; four-position cable pass-through; LED lighting unit; UV-C lamp with programmable timer.
  • Touch-screen panel for process parameters, alarms and services management.
  • Anti-vibration feet; support surface with brackets and gasket; stainless-steel rear paneling.
  • Glove box dimensions: 1800 x 650 x 750 mm; ante-room dimensions: 340 x 300 x 300 mm; support dimensions: 1800 x 590 x 870 mm.
  • Weight: approximately 310 kg.


Characteristics / Technical specifications
  • Brand: ITECO s.r.l.
  • Commercial name: SGS204 HBR
  • Category: Mobile laboratories / Glove box for NBCR
  • Structure material: PMMA (inclined front walls)
  • Filtration system: dual absolute HEPA 14 filters (with leak-test port)
  • Control panel: touch-screen for parameters, alarms and services
  • Lighting: LED lighting unit
  • Disinfection lamp: UV-C lamp with programmable timer
  • Internal power outlet: sealed; cable pass-through with four positions
  • Work chamber usable opening: 700 mm (L) x 550 mm (H)
  • Dimensions (glove box): 1800 x 650 x 750 mm
  • Ante-room dimensions: 340 x 300 x 300 mm
  • Support dimensions: 1800 x 590 x 870 mm
  • Weight: approx. 310 kg
