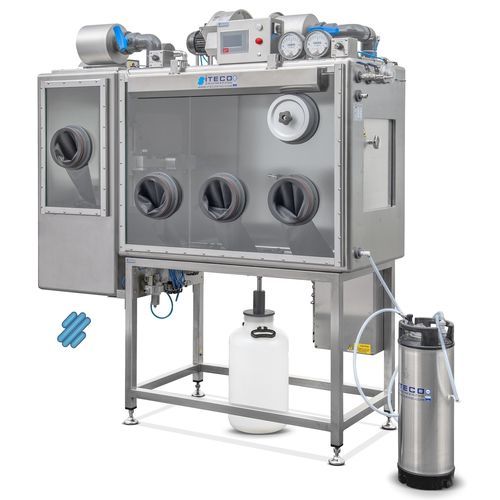

Class III glove box BIOLAB

for biocontainmentcontainmentlaboratory

Glove box for containment shelter BIOLAB is a Class III biological safety isolator designed for installation in maximum-containment laboratories (BSL-4) for handling high-risk biological agents. The enclosure is fully sealed and airtight: operations are performed via integrated gloves, with a negative-pressure workspace and absolute filtration on intake and exhaust.

Main features

• Monolithic structure in AISI 316L stainless steel sheet
• Support with antivibration terminals
• Dual absolute filtration system H14 (HEPA/ULPA) on intake and exhaust
• Left side wall with airlock for sample transfer featuring double doors and pneumatic interlocks
• Internal airlock door vertically sliding with pneumatic automation
• LED lighting
• Passages for fluids, power and instrumentation cables
• Decontamination kit
• Alarm/management kit for minimum depression control
• Touch control panel
• Version available with additional chamber for autoclave containment and camlock fittings for VHP generator
• Possibility to connect multiple glove boxes in series (modular configuration)

Technical specifications

• Material: AISI 316L stainless steel
• Safety class: Class III biological safety isolator (glove box / isolator)
• Filtration: HEPA/ULPA H14 on intake and exhaust
• Controls: touch panel, alarm system for pressure management
• Accessories: decontamination kit, LED lighting, service and instrumentation pass-throughs
• Airlock: double-door interlocked airlock with pneumatic automation for material transfer
• Modularity: can be connected in series and integrated with autoclaves and VHP generators
• Variants and dimensions (mm) / weights:
  • Base version indicative: box 1200 x 600 x 900 H; airlock 500 x 600 x 1100 H; support 1100 x 600 x 800 H; weight ~400 kg
  • Version with additional chamber/autoclave: box 1200 x 600 x 900 H; airlock 500 x 600 x 1100 H; autoclave/airlock 600 x 600 x 1100 H; weight ~600 kg
  • Compact variant (without airlock): box 900 x 700 x 900 H; airlock 400 x 450 x 500 (with rear door for shelter interface); support ~900 x 700 x 700; square-section ports with useful openings 300 x 300 mm; weight ~280 kg
  • Configuration GB1: box GB1 1200 x 600 x 900 H; autoclave box GB1 600 x 600 x 1100 H; airlock GB1 500 x 600 x 1100 H; support GB1 ~1100 x 600 x 800 H
  • Configuration GB2: box GB2 1350 x 600 x 1540 H; support GB2 1250 x 600 x 800 H; total weight ~800 kg
  • Example multi-chamber: CHAMBER 1 1000 x 650 x 800 (LxPxH); CHAMBER 2 1000 x 650 x 800; AIRLOCK 600 x 700 x 600; weight ~600 kg
• Standards and references: D.Lgs. 81/2008, EN 12469:2000, EN 12741:1999, ISO 10648-1, ISO 10628-2, ISO 14644-7
