Hospital bed CQ2k

manualpediatricfolding

Overview

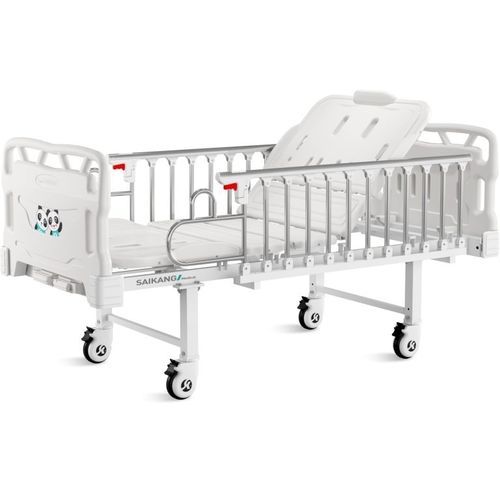

CQ2K manual pediatric bed designed for hospitals, pediatric wards and rehabilitation facilities. Manual crank adjustment with child-focused safety features, removable five-section PP platform for hygiene, full-length foldable stainless steel side rails and medical-grade covered castors. Suitable for pediatric departments, children’s hospitals and long-term pediatric care units.

Highlights

• Platform: Five-section PP platform with integrated mattress retainer; removable for sterilization.
• Siderail: Full-length foldable stainless steel side rails with 12-bar design and protective covers to assist safe transfers.
• Head & Foot Boards: PP panels with modern design, easy to clean and install.
• Hand cranks: Retractable manual cranks rated for 100,000 cycles.
• Castors: 5" covered castors with TPR tires, anti-winding shell and single-piece housing; passed dynamic test (bearing 120 kg, 30 km, 500 obstacle passes).

Platform
Five-section PP platform with integrated mattress retainer; panels removable and washable to support sterilization procedures.

Siderail
Stainless steel side rails with 12-bar configuration and protective stainless steel covers; full-length and foldable for caregiver access.

Head & Foot Board
Modern PP head and foot boards designed for easy cleaning and secure attachment.

Hand cranks
Retractable manual crank mechanism providing manual adjustment of back-rest and knee-rest; durability rated at 100,000 cycles.

Castors
5" covered casters with TPR tires tested for longevity; anti-winding design and bolted-free unified housing; dynamic test: 120 kg load over 30 km and 500 obstacle passes.

Parameters & Configuration
Technical parameters
External size (LxWxH): 1975 x 880 x 540 mm
Mattress platform: 1730 x 780 mm
Safe working load: 200 kg
Back-rest adjustment: 0–75° (±5°)
Knee-rest adjustment: 0–35° (±5°)

Technical configuration
Manual cranks: 2 pcs
Stainless steel side rail with extra protection: 1 set
PP bed ends with safe lock: 1 set
PP bed platform, removable, washable: 5 pcs
Anti-slip bed feet cover: 4 pcs
IV pole: 1 set
IV pole provision: 4 pcs
Drainage hook: 2 pcs

Hospital procurement applications
Suitable for pediatric hospitals, ward expansions, pediatric rehabilitation centers, long-term pediatric care units and hospital renovation projects. Offers a standardized manual pediatric bed option for institutional procurement focused on hygiene, safety and maintainability.

Characteristics / technical specifications

• Series / model family: CQ2k
• Platform: 5-section PP platform with integrated mattress retainer, removable for sterilization
• Side rails: Stainless steel, full-length foldable design with extra protection
• Head & foot boards: PP panels, modern design, easy to clean and install
• Manual operation: Retractable hand cranks (rated 100,000 cycles)
• Castors: 5" covered TPR casters, dynamic test passed (bearing 120 kg, 30 km, 500 obstacles)
• External dimensions: 1975 x 880 x 540 mm
• Mattress platform size: 1730 x 780 mm
• Safe working load: 200 kg
• Back-rest adjustment range: 0–75° (±5°)
• Knee-rest adjustment range: 0–35° (±5°)
• Standard configuration: 2 manual cranks, 1 set stainless steel side rails with extra protection, 1 set PP head & foot boards with safe lock, 5 removable washable PP platform panels, 4 anti-slip bed feet covers, 1 IV pole, 4 IV pole provisions, 2 drainage hooks
