Hospital bed CD3q

manualpediatricheight-adjustable

Overview

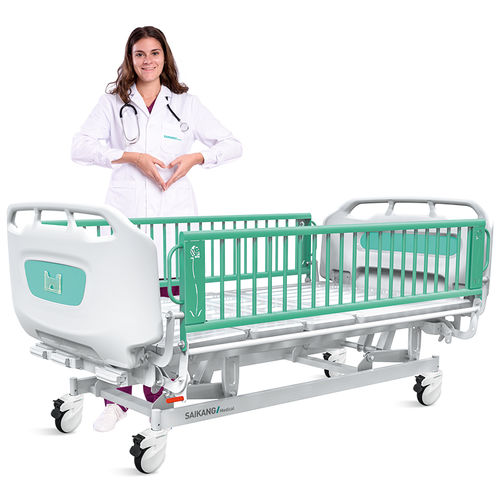

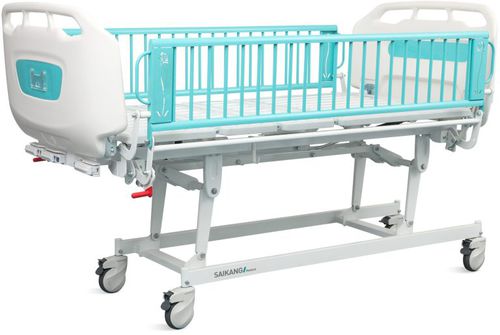

CD3q pediatric hospital bed is a three-function manual inpatient bed designed for children's hospitals, pediatric wards and rehabilitation facilities. It combines height adjustment, back-rest and knee-rest adjustments with full-length aluminium alloy side rails and ABS bed ends to support safe, ergonomic pediatric care.

Highlights

• Design: Curved headboard and footboard provide a child-friendly appearance and reduce sharp edges.
• Plastics: Medical-grade plastic components, sterilizable at 100°C, tensile strength up to 30 MPa.
• Steel & Coating: 11-step epoxy coating with ASTM-tested antibacterial finish; paint thickness ≈0.12 mm, brightness ~60°, impact resistance up to 50 kg.
• Welding & Chassis: Panasonic robotic welding ensures smooth 360° welds without defects.
• Manual Control: Three mechanical cranks for back-rest, knee-rest and height adjustments.
• Platform: Stamped platform with smooth surface and no welding scars; rated load capacity 250 kg.
• Guardrails: Sliding full-length side rails with anti-pinch design; red-highlighted lock bar for clear operation and smooth vertical sliding.
• Head & Foot Boards: Reversible head and foot boards with increased height; ABS bed ends include an automatic safety lock.
• Castors: 5" hardshell castors with TPR tyres for long life and anti-winding design; dynamic test: 120 kg load running 30 km and repeated obstacle cycles.
• Accessories: IV pole(s), drainage hooks and other common pediatric bed accessories.

Applications

• Children's hospitals and pediatric wards
• Pediatric medical centers and rehabilitation facilities for children
• Renovation or construction of pediatric hospital wards
• Centralized procurement and tender projects requiring standardized pediatric bed configurations

Parameters & Configuration
External size (L×W) | 2030×1045 mm
Bed height | 500–770 ±10 mm
Mattress platform | 1705×900 ±10 mm
Back-rest adjustment | 0–75° (±10°)
Knee-rest adjustment | 0–35° (±10°)

Standard Configuration

• Manual cranks | 3 pcs
• 5" hardshell castors | 4 pcs
• Aluminium alloy full-length side rail | 1 set
• ABS bed ends with safe lock | 1 set
• IV pole | 1 pc
• IV pole provisions | 4 pcs
• Drainage hook | 2 pcs

Technical specifications

• Model: CD3q (commercial designation)
• Three-function pediatric manual hospital bed: height, back-rest and knee-rest adjustments
• External footprint: 2030 × 1045 mm
• Adjustable bed height range: 500–770 ±10 mm
• Mattress platform size: 1705 × 900 ±10 mm
• Back-rest adjustable 0° to 75° (±10°)
• Knee-rest adjustable 0° to 35° (±10°)
• Manual crank control: 3 cranks (mechanical)
• Full-length aluminium alloy side rails, 1 set
• ABS bed ends with automatic safety lock (1 set)
• Castors: 5" hardshell TPR wheels, 4 pcs (dynamic test: 120 kg running 30 km and obstacle cycles)
• Platform: punching-formed, smooth surface, no welding scars, rated to bear 250 kg
• Plastic components: sterilizable at 100°C; tensile strength up to 30 MPa
• Paint: 11-step epoxy process, antibacterial ASTM-tested, paint thickness ≈0.12 mm, brightness ~60°, impact resistance ~50 kg
• Welding: robotic welding for full 360° smooth welds
• Accessories included: IV pole (1 pc), IV pole provisions (4 pcs), drainage hooks (2 pcs)
