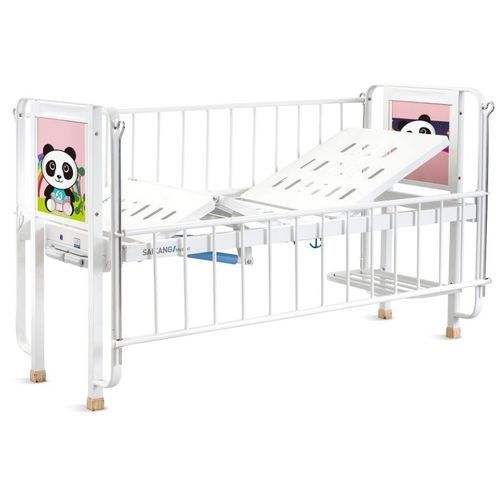

Hospital bed CR2q

manualpediatricfixed-height

Overview
CR2q manual pediatric hospital bed featuring a two-crank manual adjustment system, full-length pediatric safety rails, foldable protective guardrails and hospital-grade durable construction. Designed for children’s hospitals, pediatric wards, rehabilitation facilities and pediatric procurement projects.

Highlights

• Steels | Painting: Baosteel material. 11-process epoxy painting. ASTM testing for antibacterial coating. Paint thickness ~0.12 mm; brightness ~60°. Paint can resist 50 kg impact.
• Welding: Panasonic robotic welding for 360° full smooth welding.
• Hand Control: Suspended hand crank designed for 100,000 cycles. Extreme protection device with warning at maximum tilt.
• Platform: One-piece punched platform, smooth surface with no welding scars; bearing capacity 250 kg. Optional resin X-ray translucent platform available.
• Head & Foot Board: Powder-coated steel frame with MDF fire-proof plate. Head and foot board sizes can be customized. Supplied with carton packaging.
• Guardrail: Foldable full-length side rail with protection handle, anti-pinch design for patient safety, modern appearance, easy to install and clean.
• IV Pole: Full stainless steel IV pole, bearing 15 kg.
• Drainage hooks: Mobile plastic drainage hooks.
• Optional accessories: lifting pole (bearing 765 N), adjustable oxygen cylinder rack for various tank sizes, adjustable shoes holder (800×400 mm).

Applications

• Pediatric Hospitals — suitable for newly constructed children’s hospitals and standardized inpatient departments.
• Pediatric Wards — designed for safe, comfortable and practical daily nursing environments for young patients.
• Pediatric Rehabilitation Centers — durable manual beds for recovery programs and long-term care.
• Hospital Renovation Projects — efficient replacement option to upgrade pediatric departments.
• Children Care & Long-Term Pediatric Facilities — supports continuous patient support with simple operation and stable performance.
• Public Procurement & Large-Scale Projects — suitable for government pediatric healthcare programs and large procurements.

Packing & Quality
Powder-coated and epoxy-painted steel frame; robotic welding quality; tested coatings and antibacterial painting processes; supplied with protective carton packaging.

Parameters & Configuration (summary)

• Manual cranks: 2 pcs
• Full length side rail: 1 set
• Integrated bed ends: 1 set
• IV pole: 1 pc (with 4 prevision holes)
• Drainage hook: 2 pcs

Caractéristiques / Spécifications techniques

• External size (L × W × H): 1800 × 860 × 1110 mm ±10 mm
• Bed height: 600 mm ±10 mm
• Mattress platform size: 1600 × 680 mm ±10 mm
• Back-rest adjustment: 0–75° (±10°)
• Knee-rest adjustment: 0–35° (±10°)
• Platform load bearing: 250 kg
• Paint thickness: approx. 0.12 mm
• Guardrail: foldable full-length ABS/steel side rails with anti-pinch protection
• Hand control: suspended manual crank, rated for 100,000 cycles, with over-tilt warning
• IV pole: stainless steel, capacity 15 kg
• Optional X-ray translucent resin platform available
