Home care bed SK-HD01

nursing homeelectricgeriatric

Overview

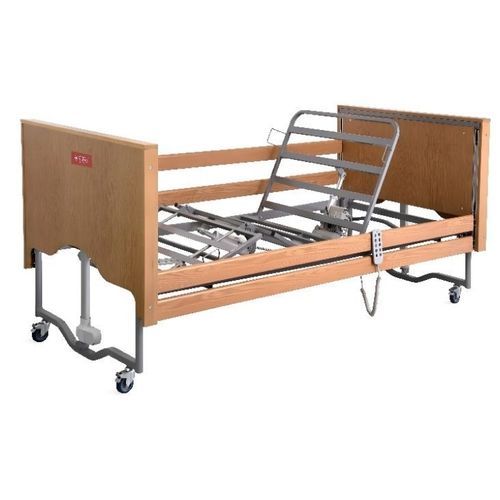

The SK-HD01 electric homecare bed offers a residential appearance with clinical functionality for nursing homes, home healthcare and rehabilitation facilities. Key features include a very low minimum platform height (190 mm), four linear motors for independent back, knee and height adjustments, full-length wooden side rails and a 215 kg safe working load.

Highlights

• Super low position: Extremely low mattress platform (190 mm) to facilitate safe transfers and reduce fall risk.
• Four-part bed deck: Ergonomically divided deck (back, seat, leg sections) with independent backrest and knee-rest movements for individualized positioning.
• Head & foot boards: Laminated board combined with solid beech components for a residential look while maintaining structural stability.
• Siderails: Full-length wooden side rails along the mattress platform to maximize patient safety and support repositioning.
• Remote controller: 10-button handset with locking function to prevent accidental operation; simple layout for caregivers and patients.

Applications / Procurement value

• Nursing homes and elderly care facilities: Low platform height and full-length wooden side rails reduce fall risk and contribute to a homelike environment.
• Home healthcare and community care: Residential-style headboard/footboard and electric positioning support long-term care at home.
• Rehabilitation and recovery centers: Backrest, knee-rest and height adjustment facilitate therapy positioning and caregiver ergonomics.
• Assisted-living facilities: Combines clinical adjustment functions with warm finishes to suit resident rooms.
• Long-term nursing and chronic care: Four-section deck and electric adjustments reduce manual repositioning for caregivers.
• Government and public care tenders: Defined motor functions, 215 kg safe working load, low platform height and optional emergency power meet common procurement requirements.

Technical specifications

• Model: K-HD01
• Commercial designation (page model): SK-HD01
• External size: 2140 × 950 mm
• Deck dimension (mattress platform): 2000 × 900 mm
• Back-rest adjustment: 0–72°
• Knee-rest adjustment: 0–28°
• Reverse Trendelenburg: 0–12°
• Trendelenburg: 0–12°
• Lowest & Highest platform position: 190–610 mm
• Safe working load: 215 kg
• Compatible mattress size: L2000 × 900 mm / 800 mm
• Linear motors: 4 pcs
• Wooden side rails: 1 set (full-length)
• Head & foot board: 1 set (laminated board + solid beech components)
• Castors: 4 pcs
• Remote controller: 1 pc (10-button handset with lock)
• Emergency power system: Optional
• Trapeze pole: Optional
