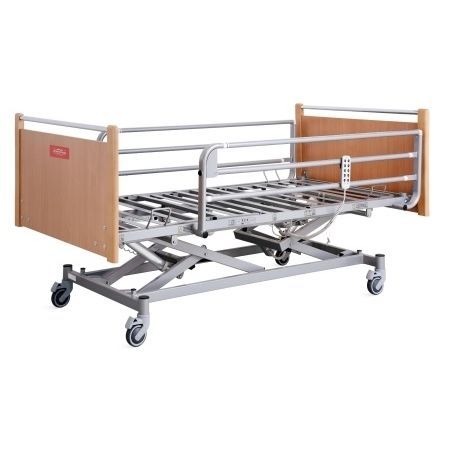

Home care bed SK-HD04

nursing homeelectricTrendelenburg

Product overview
The SK-HD04 is a height-adjustable electric homecare bed designed for nursing homes, rehabilitation centres, assisted living and long-term care environments. Key features include a 260–760 mm height adjustment range, four linear motors providing independent backrest, legrest, height and tilt positioning, Trendelenburg (0–15°) and reverse Trendelenburg (0–18°) functions, a low minimum position (260 mm) to reduce fall risk, a 4-part mattress platform and fold-down side rails that combine resident safety with caregiver access.

Main features

• Height adjustment: 260–760 mm (minimum height 260 mm)
• Four-section mattress platform: independent backrest and legrest adjustment for ergonomic support
• Backrest angle: 0–68°
• Legrest angle: 0–28°
• Trendelenburg: 0–15°; Reverse Trendelenburg: 0–18°
• Four linear motors for independent positioning (4 pcs)
• Fold-down wooden side rails (1 set) or optional ABS rails; one-button folding with three-profile construction for safe operation
• Head & foot boards: laminated + solid beech wood, 6 standard colours
• Remote controller: 10-button handset with lock function (1 pc)
• Castors: 4 pcs with brakes
• Safe working load: 215 kg
• Mattress size options: L2000 × 900 mm or 800 mm
• Emergency power system and trapeze pole: optional

Applications & procurement value

• Nursing homes and skilled care facilities — supports low resting position for resident safety and elevated positions for nursing procedures; ergonomic caregiver access and compliance with facility specifications.
• Rehabilitation and recovery centres — independent adjustment of backrest, knee-rest, height and tilt supports transfers, therapy and progressive mobilisation.
• Long-term and higher-acuity care units — extended positioning envelope (Trendelenburg/reverse Trendelenburg) and multi-motor control for frequent posture changes.
• Assisted-living and residential care — warm residential appearance with professional electric functionality (laminated and beech wood ends).
• Public procurement and facility upgrades — standardized height range, 4-motor system and 215 kg load rating that meet common tender requirements.

Technical parameters (table)
Bed overall dimensions: L2060 × W1050 mm
Back rest: 0–68°
Leg rest: 0–28°
Trendelenburg: 0–15°
Reverse Trendelenburg: 0–18°
Safe working load: 215 kg
Mattress size: L2000 × 900 mm / 800 mm
Height adjustment: 260–760 mm
Linear motor: 4 pcs
Wooden side rails: 1 set (fold-down)
Head & foot board: 1 set (laminate + solid beech wood, 6 colours)
Castors: 4 pcs (with brakes)
Remote controller: 1 pc (10-button with lock)
Emergency power system: Optional
Trapeze pole: Optional

Technical specifications

• Model: SK-HD04
• Height adjustment range: 260–760 mm (minimum 260 mm)
• Height mechanism: 4 linear motors (4 pcs)
• Backrest angle: 0–68°
• Legrest angle: 0–28°
• Trendelenburg: 0–15°; Reverse Trendelenburg: 0–18°
• Safe working load: 215 kg
• Bed overall dimensions: L2060 × W1050 mm
• Mattress size options: L2000 × 900 mm or 800 mm
• Side rails: wooden fold-down side rails 1 set (one-button operation)
• Head & foot boards: laminated + solid beech wood, 6 standard colours
• Castors: 4 pcs
• Remote controller: 10-button with lock (1 pc)
• Emergency power system: optional
• Trapeze pole: optional
