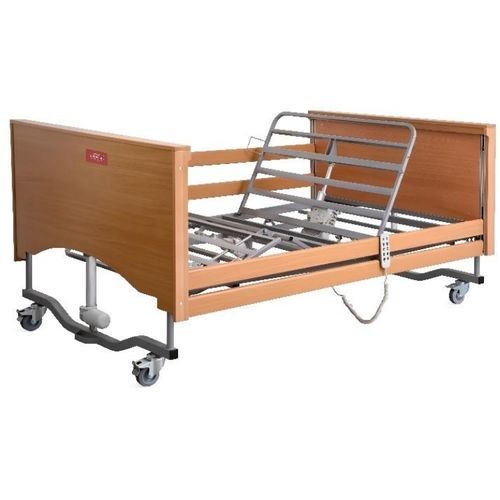

Home care bed SK-HD03

nursing homeelectricbariatric

Overview
The SK-HD03 is a wide electric homecare bed designed for long-term and high-capacity care projects. Key attributes include a 1200 mm mattress platform, reinforced frame supporting a 318 kg safe working load, a low mattress platform position (260 mm minimum), and a four-motor positioning system suitable for nursing homes, rehabilitation centers and organized homecare programs.

Highlights

• Maximum patient weight: Extra stable and sturdy frame allows a safe load up to 318 kg.
• Bed deck: 4-part divided deck; back and leg sections fold separately with an ergonomic size division.
• Head & Foot Board: Laminated board and solid beech wood finish for residential appearance with solid frame stability.
• Siderail: Full-length wooden side rails along the mattress platform maximize patient safety and help prevent falls.
• Remote controller: 10-button handset with locking function to prevent accidental touches; ergonomic shaped handset with individual function lock option.

Technical parameters (table)
Model: SK-HD03
External Size: 2235×1220 mm
Deck Dimension: 2000×1200 mm
Back-rest Adjustment: 0–72°
Knee-rest Adjustment: 0–28°
Reverse Trendelenburg: 0–10°
Trendelenburg: 0–10°
Lowest & Highest Position: 260–625 mm
Safe working load: 318 kg
Mattress size: L2000×1200 mm
Linear Motor: 4 pcs
Wooden side rails: 1 set
Head & Foot Board: 1 set
Castors: 4 pcs
Remote controller: 1 pc (10-button handset with lock)
Emergency power system: Optional
Trapeze Pole: Optional

Key features (summary)
Increased load capacity due to reinforced construction and dedicated linear actuators
1200 mm mattress platform for additional patient space
Extremely low mattress platform position — minimum 260 mm above floor
Wide range of colours and residential-style head/foot boards
Metal lamel mattress platform for ventilation and support
Transport stand system for easy storage and movement
Warranty: 2 years (as listed in product highlights)

Applications

• High-capacity care projects: suited for plus-size and high-weight patient care where reinforced construction and wider mattress are required.
• Nursing homes and residential care: long-term electric positioning, bedside protection and additional mattress space for residents.
• Rehabilitation centers: supports patient positioning for rest, meals, nursing procedures, transfers and rehabilitation activities.
• Organized homecare programs: residential appearance with reinforced structure and lockable handset for controlled caregiver access.
• Public procurement and facility upgrades: configuration (1200 mm deck, 318 kg load, 260–625 mm height, 4 motors) suitable for tender and BOQ evaluation.

Technical specifications

• Model: SK-HD03
• Deck width: 1200 mm
• External size: 2235×1220 mm
• Deck dimension: 2000×1200 mm
• Mattress size: L2000×1200 mm
• Safe working load: 318 kg
• Height range (lowest–highest): 260–625 mm
• Back-rest adjustment: 0–72°
• Knee-rest adjustment: 0–28°
• Trendelenburg / Reverse Trendelenburg: 0–10° / 0–10°
• Linear motors: 4 pcs
• Siderails: full-length wooden side rails (1 set)
• Head & foot boards: laminated board + solid beech wood (1 set)
• Castors: 4 pcs
• Remote controller: 10-button handset with locking function (1 pc)
• Emergency power system and trapeze pole: optional
• Mattress platform: metal lamels
• Storage/transport: transport stand system for easy storage and transport
• Warranty: 2 years for highlighted features
