Home care bed SK-HD02

electricultra-lowTrendelenburg

Product overview

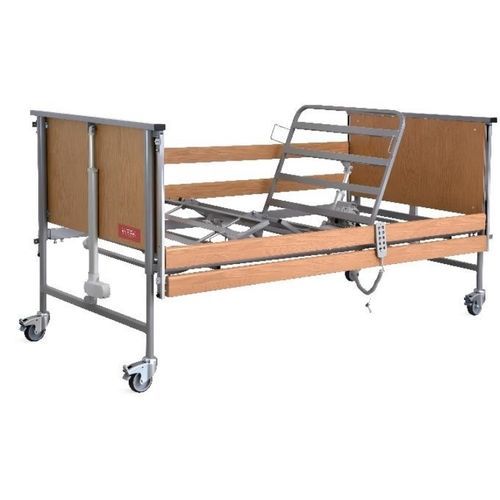

The SK-HD02 electric homecare bed is designed for institutional and long-term care settings (nursing homes, rehabilitation centres, assisted-living facilities and chronic care units). Key mechanical features include a four-column lifting structure, four linear motors for independent positioning, an extremely low mattress platform position and a height adjustment range of 385–805 mm. Full-length wooden side rails and laminated board with solid beech head/foot boards provide a residential appearance while ensuring stable support.

Highlights

• Four-column lifting construction for improved stability
• 4-section mattress platform with independent back and leg adjustments
• Compact overall length (2120 mm) to fit existing rooms
• Full-length wooden side rails to maximise patient safety
• Head and foot boards in laminated board + solid beech for residential aesthetics
• 10-button handset with lock to prevent accidental activation
• Maximum safe working load: 215 kg
• Manufacturer warranty: 2 years (manufacturer stated)

Key features (summary)
Extremely low mattress platform position
Four-column construction for enhanced stability
Compact overall length: 2120 mm
Lowered side rails position available
4-section mattress platform (metal or wooden slats)
Head and foot boards: laminated board + solid beech
Multiple finish colours available
Shipped on transport adapter
Ergonomic 10-button handset with lock
Maximum working load: 215 kg
Warranty: 2 years

Technical parameters (selected)
Model: SK-HD02
External size: 2120 × 920 mm
Deck dimension: 2000 × 900 mm
Back-rest adjustment: 0–72°
Knee-rest adjustment: 0–28°
Reverse Trendelenburg: 0–12°
Trendelenburg: 0–12°
Lowest & highest position: 385–805 mm
Safe working load: 215 kg
Mattress size: L2000 × 900 mm / 800 mm
Linear motors: 4 pcs
Wooden side rails: 1 set (full length)
Head & foot boards: 1 set (laminated board + solid beech)
Castors: 4 pcs
Remote controller: 1 pc (10-button handset with lock)
Emergency power system: Optional
Trapeze pole: Optional

Applications

• Nursing homes and residential care — patients requiring regular electric positioning and assisted transfers
• Rehabilitation and recovery centres — adjustable backrest, knee-rest and platform height support rehabilitation tasks
• Assisted-living developments — residential appearance with clinical functions
• Chronic care / long-term nursing — frequent repositioning and caregiver operation support
• Facility renovation and replacement — compact length fits existing rooms and improves caregiver access

Procurement & configuration notes

• Configuration options: mattress platform material (metal or wooden slats), mattress width (900/800 mm), wood finish and optional accessories (emergency power system, trapeze pole)
• Linear motor brands: multiple suppliers supported; motor quantity: 4 linear motors
• Consider the 215 kg safe working load and 385–805 mm height range for caregiver ergonomics and tender/BOQ requirements

Technical specifications

• Model: SK-HD02
• Overall dimensions: 2120 × 920 mm
• Deck dimensions: 2000 × 900 mm
• Height adjustment range: 385–805 mm
• Back-rest: 0–72°
• Knee-rest: 0–28°
• Trendelenburg / Reverse Trendelenburg: 0–12°
• Motors: 4 linear motors
• Mattress platform: 4-section (metal or wooden slats)
• Supported mattress sizes: L2000 × 900 mm / 800 mm
• Side rails: full-length wooden side rails (1 set)
• Head & foot boards: laminated board + solid beech (1 set)
• Castors: 4 pcs
• Remote: 10-button handset with locking function (1 pc)
• Maximum safe working load: 215 kg
• Warranty (manufacturer stated): 2 years
• Optional accessories: emergency power system, trapeze pole
