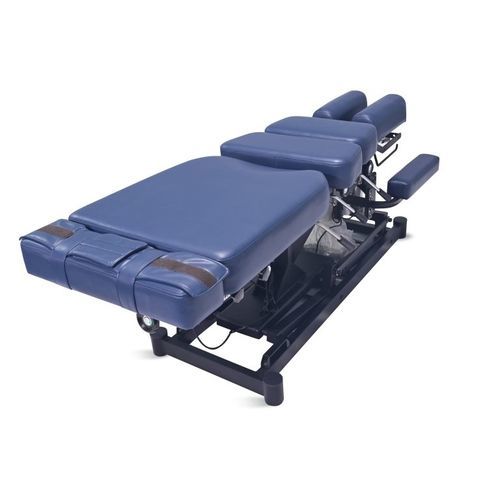

Electric chiropractic table SK-PB025

with headrestwith armrests4-section

Overview
Designed to follow body contours for targeted pressure distribution. Compatible with American chiropractic techniques. Features a 3D swing spinal therapy mechanism, electric height adjustment with dual-control foot controller (570–890 mm), multi-section drop/compression for head, neck, upper thoracic, lower thoracic and lumbar/pelvis, and an ergonomic treatment surface with an 8 cm high-density foam mattress. Headrest with two small motors for vertical movement (0–8 cm) and tilt (±25°). Manual lateral headrest width adjustment up to 6 cm. Fixed armrest bracket for natural arm positioning (load capacity 15 kg; L390 × W120 mm).

Construction & Base
High-quality Baosteel structural tubing (40×40 mm, 40×80 mm, 25×50 mm) with 1.5 mm wall thickness, welded as a single piece with smooth seams. Frame rated to bear up to 200 kg. Surface finished with high-hardness powder coating for durability and environmental compliance.

Upholstery & Mattress
Medical-grade PU upholstery: anti-stain, flame-retardant and mildew-resistant. Mattress: high-density foam, 8 cm thickness. Base supported by a high-density board. Available upholstery colors: black, blue, red.

Functional Features

• 3D swing spinal therapy mechanism for dynamic treatment support
• Electric height adjustment via dual foot controller (570–890 mm)
• Motorized headrest vertical (0–8 cm) and tilt (±25°) adjustment
• Manual headrest width adjustment up to 6 cm
• Four-section drop function (head, upper thoracic, lower thoracic, lumbar/pelvis) with manual lift/press and knob pressure control
• Cylindrical steel four-leg support for stability
• Fixed armrest bracket (L390 × W120 mm), load capacity 15 kg

Applications

• Chiropractic clinics
• Spinal therapy departments
• Rehabilitation centers
• Sports medicine and performance clinics
• Pain management centers
• Private chiropractic practices

Technical specifications

• Dimensions (L×W×H mm): 1720 × 580 × 570–890
• Extended ankle cushion (mm): 180
• Mattress thickness (mm): 80
• Lifting distance (mm): 80
• Load capacity (kg): 200
• Power supply: AC220V, 50Hz
• Rated power: 200 VA
• Net weight (kg): 95
• Drop function areas: head / neck / upper thoracic / lower thoracic / lumbar pelvis
