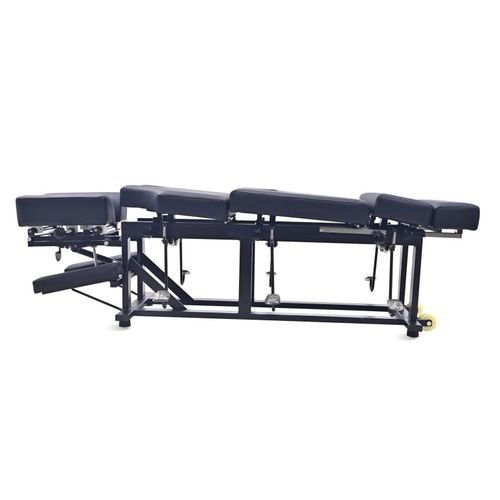

Mechanical chiropractic table SK-PB018

on casterswith headrestwith armrests

Overview
Three-section manual chiropractic table SK-PB018 designed for spinal rehabilitation and routine manual therapy. Ergonomic three-stage pressure surface conforms to body contours. Sturdy steel frame, 80 mm high-density mattress and adjustable headrest/foot sections enable effective spinal positioning and drop functions for targeted manual treatment.

Highlights

• Design: Ergonomic three-stage pressure layout to accommodate different body zones and pressure points; simple and stable structural design; available surface colors: black, blue, red.
• Base / Frame: Structural sections from Baosteel: 40×40 mm, 40×80 mm and 25×50 mm with 1.5 mm wall thickness; manual one-piece welding with smooth seams; rated load up to 200 kg.
• Coating: High-hardness powder coating for durable, environmentally friendly surface protection.
• Bed surface: PU leather upholstery (stain-resistant, flame-retardant, mildew-proof) over high-density sponge (80 mm) and multi-layer board base; thoracic section center hollowed for increased comfort.
• Foot pedal: Pedal-operated drop function with pressure massage support to relax thigh and gluteal muscles.
• Casters: Two integrated casters; lifting the headrest engages rear casters for easy repositioning.
• Foot pads: Anti-slip, silent, wear-resistant and floor-protective foot pads.
• Headrest: Gas-rod assisted vertical adjustment with handle; separate lever for tilt adjustment (approx. 0°–45°).
• Adjustable headrest width: Width adjustable by knob under headrest; adjustable range 6 cm to accommodate different face shapes.
• Armrest: Fixed bracket armrest for natural arm posture; load capacity 15 kg; dimensions L36 cm × W11 cm × H5 cm.

Clinical applications

• Physiotherapy departments — muscle rehabilitation, joint mobilization, posture correction and manual therapy.
• Rehabilitation centers — musculoskeletal recovery, mobility training and conservative therapy programs.
• Chiropractic clinics — routine adjustments, spinal manipulation and manual treatments.
• Community rehabilitation and outpatient therapy rooms — basic musculoskeletal care and routine manual procedures.
• Therapy training and education centers — demonstrations, hands-on practice and supervised training.
• Bulk procurement for hospitals and clinics — standardized manual treatment tables for multi-room deployment.

Technical specifications

• Model: SK-PB018
• Product type: Manual chiropractic / spinal therapy table
• Bed body dimensions (mm): L1800 × W550 × H530
• Extended ankle cushion dimension (mm): 150
• Mattress thickness (mm): 80 (high-density sponge)
• Load-bearing capacity: 200 kg
• Product net weight: 60 kg
• Drop function areas: lumbar spine / pelvis / legs
• Frame material/specification: Baosteel sections 40×40 mm, 40×80 mm, 25×50 mm; wall thickness 1.5 mm; manual one-piece welding
• Surface upholstery: PU leather (stain-resistant, flame-retardant, mildew-proof)
• Coating: High-hardness powder coating
• Headrest adjustment: Gas rod vertical + tilt lever (~0°–45°); width adjustable range 6 cm
• Armrest load capacity and size: 15 kg; L36 cm × W11 cm × H5 cm
• Mobility: Two casters; rear caster engaged by lifting headrest
