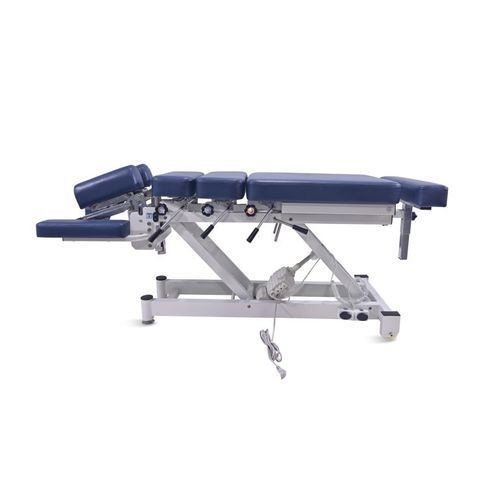

Electric chiropractic table SK-PB023

on casterswith headrest3-section

Overview
Electric spinal therapy bed with adjustable lumbar and foot sections, electric height control, CE-certified motor delivering 8000 N thrust, and a 95 mm high-density comfort mattress. Designed for rehabilitation centres, physical therapy clinics, chiropractic practices and orthopedic departments.

Highlights

• Design – Engineered to match varying pressure conditions across body regions; conforms to body contours for prolonged spinal treatment.
• Base – Baosteel profiles (40×40 mm, 40×80 mm, 25×50 mm) with 1.5 mm wall thickness; one-piece manual welding; load capacity up to 200 kg.
• Coating – High-hardness powder coating for durable, environmentally friendly surface protection.
• Bed surface – Eco-friendly leather (anti-fouling, flame-retardant, mildew-resistant); 95 mm high-density sponge; supported by a high-density board. Available colours: black, blue, red.
• Foot controller / Support – Cylindrical steel four-leg support for stability and safety.
• Motor – CE-certified motor with 8000 N push rod; installation hole distance 328 mm; stroke length 120 mm; supports lifting and intermittent compression functions for gentle massage and comfort.
• Casters – Two casters on base; rear casters engage when the head section is raised to allow movement.
• Foot pads – Steel non-slip foot pads for added stability.
• Headrest adjustment – Two small motors control vertical movement (0–5 cm) and tilt (±12°).
• Headrest width adjustment – Manual lateral adjustment up to 6 cm to accommodate different face sizes.

Applications

• Chiropractic clinics
• Rehabilitation medicine departments
• Spinal therapy centres
• Physiotherapy centres
• Orthopedic rehabilitation units
• Multidisciplinary therapy and integrated rehabilitation centres

Technical parameters

• Model: SK-PB023
• Load capacity: 200 kg
• Bed dimensions (L×W×H): 1800×550×520~740 mm
• Mattress thickness: 95 mm (high-density sponge)
• Extended ankle cushion: 150 mm
• Lifting stroke / lifting distance: 220 mm
• Motor thrust: 8000 N; installation hole distance: 328 mm; stroke length: 120 mm
• Power supply: AC 220V, 50Hz
• Rated power: 200 VA
• Surface materials: eco-friendly leather (anti-fouling, flame-retardant, mildew-resistant)
• Frame material: Baosteel profiles; welded one-piece frame; wall thickness 1.5 mm
• Coating: high-hardness powder coating
• Headrest vertical adjustment: 0–5 cm; tilt ±12°; lateral width adjustment up to 6 cm
• Mobility: two casters on base (rear casters engaged when head section lifted)
