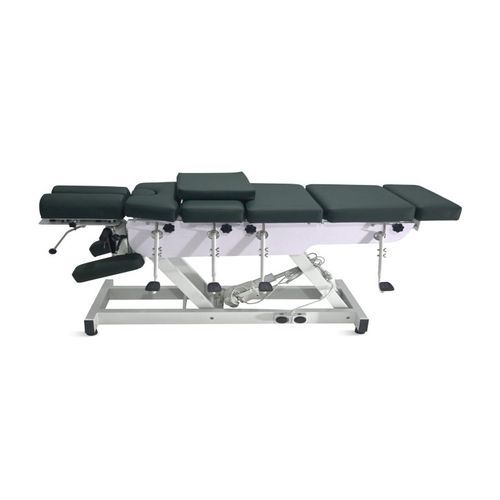

Electric chiropractic table SK-PB021

with headrestwith adjustable height backrestwith tilting backrest

Overview
The SK-PB021 Five‑Zone Electric Chiropractic Table (Spinal Therapy Bed) is an electrically adjustable treatment table designed for targeted spinal adjustments and therapeutic positioning. The table features five drop zones for head/neck, thorax, lumbar, pelvis and legs, an electric lifting system, an adjustable headrest with a cervical side‑flexion device, foot‑pedal control and a CE‑certified motor drive for precise positioning and intermittent compression actions.

Highlights

• Design: Ergonomic five‑zone layout shaped to patient anatomy for clinical spinal procedures and repeated therapy sessions.
• Base: Baosteel welded frame (profiles 40×40 mm, 40×80 mm, 25×50 mm) with 1.5 mm wall thickness; one‑piece manual welding; rated load up to 200 kg.
• Coating: High‑hardness environmental powder coating for durable, low‑maintenance surface finish.
• Bed surface: PU upholstery (anti‑fouling, flame‑retardant, mildew‑resistant) with ≈80 mm high‑density sponge over a high‑density board. Available colors: black, blue, red.
• Foot pedal / controller: Foot pedal for lift/lower control; knurled handle for preload adjustment; manual spacing adjustment with five positions (max 90 mm); dual‑control foot controller with magnetic mount.
• Motor: CE‑certified motor with push rod delivering 8000 N thrust; installation hole min distance 328 mm; stroke 120 mm enabling stroke‑based lifting and intermittent compression massage.
• Accessories & ergonomics: Non‑slip silent foot pads, gas‑spring headrest with vertical/angle adjustment and forward/back travel, lateral cervical side‑flexion device with locking handle.

Intended clinical applications

• Chiropractic clinics — targeted cervical, thoracic, lumbar and pelvic adjustments.
• Spinal therapy centers — precise head positioning and cervical side‑flexion for neck/spine procedures.
• Hospital rehabilitation departments — electric height adjustment and segmented support to improve therapist ergonomics during repeated treatments.
• Cervical care clinics — controlled head and upper‑spine positioning for assessment and mobilization.
• Pain management centers — conservative multi‑region pain therapy using segmented drop zones.
• Teaching hospitals & clinical training — multi‑zone structure for demonstrations and supervised practice.

Functional features

• Five‑zone drop configuration: neck / chest / waist / pelvis / legs for precise spinal adjustments.
• Electric overall lifting mechanism (AC power input: AC220V, 50Hz).
• Intermittent compression function via motorized push rod (stroke control).
• Adjustable headrest: forward/back travel ≈20 mm, vertical range 0–100 mm, tilt +23° / -18°, gas‑spring assisted.
• Lateral cervical side‑flexion device with locking handle for secure headrest rotation and positioning.

Technical specifications

• Model: SK‑PB021
• Bed dimensions (mm): L1740 × W550 × H550~780
• Extended ankle cushion (mm): 150
• Mattress thickness (mm): 80
• Lifting distance (mm): 230
• Load capacity (kg): 200
• Net weight (kg): 110
• Power input: AC220V, 50Hz
• Motor thrust: 8000 N; installation hole min distance: 328 mm; stroke: 120 mm
• Surface materials: PU leather (anti‑fouling, flame‑retardant, mildew‑resistant) + high‑density sponge (~80 mm) + high‑density board
• Base: Baosteel sections 40×40 mm, 40×80 mm, 25×50 mm; wall thickness 1.5 mm; one‑piece welded frame
• Foot pedal: five‑level spacing, max 90 mm; dual control foot controller (magnetic mount)
• Drop zones: neck / chest / waist / pelvis / legs
• Upholstery colors: black, blue, red
