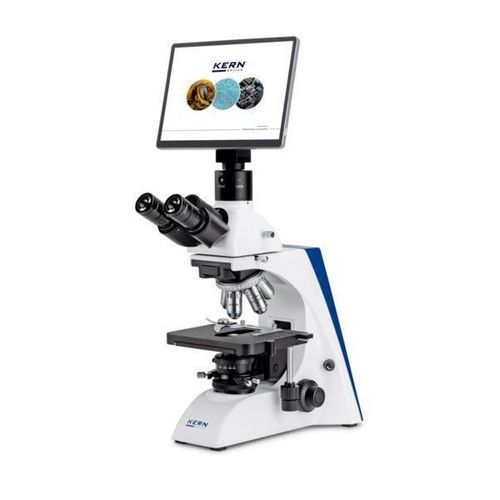

Digital video microscope OBN 135T251

laboratorytouchscreen tablettrinocular

Short description

• Complete digital set comprising trinocular microscope OBN 135 and KERN ODC 251 8 MP 4K tablet camera with C-mount adapter for comfortable observation and precise documentation of samples.

Product family
OBN-S series: modular components for professional customization, ergonomic design and industrial-grade optical configuration.

Key features

• Infinity optical system with Infinity Plan objectives and 5-position nosepiece.
• Trinocular tube with 10x eyepieces (20 mm field of view) for binocular observation and camera attachment.
• Transmitted LED illumination 3 W, continuously dimmable; professional Köhler illumination with adjustable field diaphragm.
• Centerable Abbe condenser NA 1.25, height-adjustable with adjustable aperture diaphragm.
• Large mechanical cross stage and ergonomic coaxial coarse and fine focusing on both sides; fine drive minimum 0.002 mm for precise focusing.
• Wide range of optional modules: swing-out condenser, additional eyepieces and objectives, colour filters, phase contrast units, darkfield condenser, polarising unit, Butterfly tube, fluorescence modules, etc.

KERN ODC 251 tablet camera (included)

• Android tablet with 10.5" HD touch display combined with integrated 8 MP (1/1.8") CMOS sensor supporting 4K video at 30 fps.
• High-resolution image capture and 4K video recording; measuring functions for distance and area.
• Automatic white balance and contrast adjustment; live view on tablet and HDMI output to external displays.
• Interfaces: Ethernet, Bluetooth, WiFi, USB 2.0/3.0, HDMI; data export to USB storage and transfer via USB cable.

Technical data (extract)
Optical system: Infinity
Tube type: Trinocular
Eyepieces: 10x, field 20 mm
Objectives (standard): 4×, 10×, 20×, 40×, 100×
Objective quality: Infinity Plan
Nosepiece positions: 5
Illumination (transmitted): LED, 3 W
Condenser: Abbe, NA 1.25, centerable
Focusing: coaxial coarse and fine drive; fine drive min 0.002 mm
Display: HD Touch 10.5" (1920x1280)
Processor: Rockchip RK3568 Quad-Core
Camera sensor: CMOS 1/1.8"; 8 MP 4K, 30 fps
Interfaces: Ethernet, Bluetooth, WiFi, USB 2.0/3.0, HDMI
Dimensions (W×D×H): 390×235×620 mm
GTIN/EAN: 4045761490895

Specifications

• Model: OBN 135T251 (digital microscope set)
• Optical system: Infinity; Infinity Plan objectives
• Tube: Trinocular; eyepieces 10x, field 20 mm
• Standard objectives: 4×, 10×, 20×, 40×, 100×
• Illumination: Transmitted LED 3 W, Köhler
• Condenser: Abbe NA 1.25, centerable
• Focusing: coaxial coarse/fine drive; fine drive 0.002 mm
• Camera/tablet: KERN ODC 251 — CMOS 8 MP (1/1.8"), 4K @30 fps; 10.5" HD touch display
• Interfaces: Ethernet, Bluetooth, WiFi, USB 2.0/3.0, HDMI
• Dimensions: 390×235×620 mm
• GTIN/EAN: 4045761490895
