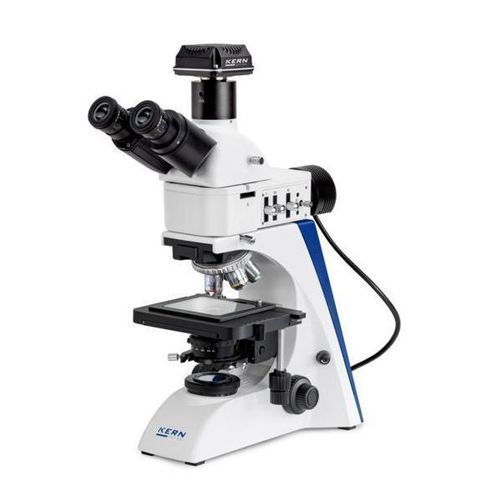

Optical video microscope OKO 178C832

digitalfor materials researchupright

Overview

• Digital set with metallurgical microscope OKO 178, ODC 832 camera and C‑mount adapter

OKO 178 (microscope)

• Metallurgical microscope for inspection of metals and surface analysis
• Combined LED incident and LED transmitted illumination
• Height-adjustable, centring 1.25 Abbe condenser
• Field diaphragm for Köhler illumination (standard)
• Open mechanical cross table integrated as standard
• Simple polarising unit (analyser and polariser) included

ODC 832 (camera)

• Universal microscope camera; connects to microscope or to laptop/PC via USB 3.0
• Aptina CMOS sensor for fast, clear image rendering
• Suitable for demanding applications (darkfield, phase contrast, fluorescence)
• Supplied with Microscope VIS software for synchronization and image handling
• Powered via USB cable (no external power supply required)

Technical Data (table)
Optical system: Infinity
Tube type: Trinocular
Ocular magnifications: 10x
Ocular visual field: 22 mm
Standard objectives: 5×, 10×, 20×, 50×
Lens quality: Infinity Plan
Nosepiece screw-in locations: 5
Illuminance: Reflected light, Transmitted light
Illumination intensity transmitted light: 5 W
Illumination type transmitted light: LED
Illumination intensity incident light: 5 W
Illumination type incident light: LED
Condensor type: Standard
Condenser - Aperture: 0,3
Condenser - Mounting: fixed
Focusing mechanism: coaxial coarse and fine drive
Fine drive minimum: 0,002 mm
Camera - Sensor type: Aptina CMOS
Camera - Colour depth: Colour
Camera - Sensor size: 1/2,5"
Camera - Resolution: 5.1 MP
Camera - Framerate: 14.2 - 101.2 fps
Interfaces: USB 3.0
Dimension (W×D×H): 390×235×620 mm
GTIN/EAN number: 4045761490956

Characteristics / technical specifications

• Optical system: Infinity
• Tube type: Trinocular
• Ocular: 10×, visual field 22 mm
• Standard objectives: 5×, 10×, 20×, 50× (Infinity Plan)
• Nosepiece: 5 screw-in positions
• Illumination: LED incident and LED transmitted (5 W each)
• Condenser: 1.25 Abbe, centring possible, aperture 0.3, fixed mounting
• Focusing: coaxial coarse and fine drive; fine drive minimum 0.002 mm
• Camera sensor: Aptina CMOS, 1/2,5"
• Camera resolution: 5.1 MP
• Camera framerate: 14.2 - 101.2 fps
• Interface: USB 3.0
• Dimensions (W×D×H): 390×235×620 mm
• GTIN/EAN: 4045761490956
