Digital video microscope OBN 142T251
for teachinglaboratoryclinical

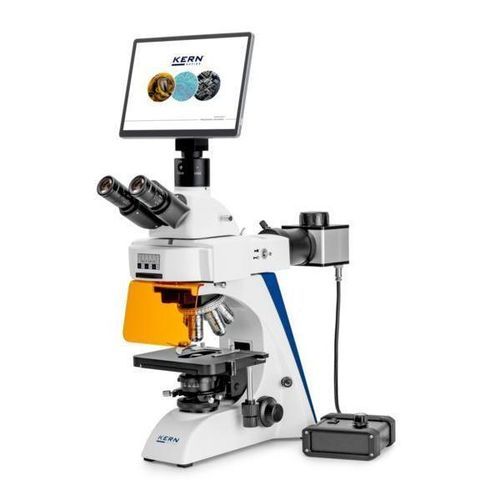

Digital video microscope - OBN 142T251 - KERN & SOHN - for teaching / laboratory / clinical
Digital video microscope - OBN 142T251 - KERN & SOHN - for teaching / laboratory / clinical
Add to favorites
Compare this product
Go to the KERN & SOHN website for more information

Characteristics

Type
digital
Applications
laboratory, clinical, for teaching
Ergonomics
touchscreen tablet
Microscope head
trinocular
Quality of the objectives
infinity corrected, plan
Observation technique
fluorescence, epifluorescence, UV fluorescence
Configuration
benchtop
Light source
LED, with LED light
Options and accessories
with LCD screen, with color camera, with touchscreen, with USB port, wireless
Other characteristics
high-definition, digital camera
Magnification

Max.: 1,000 unit

Min.: 40 unit

Length

39 cm
(15.4 in)

Width

23.5 cm
(9.3 in)

Height

62 cm
(24.4 in)

Description

Overview
  • Digital fluorescence microscope set KERN OBN 142T251: complete imaging and documentation solution for laboratory analysis, clinical work and training.
  • Includes fluorescence-capable trinocular microscope OBN 142 and ODC 251 Android tablet camera with 10.5" HD touch display and integrated 8 MP sensor.


OBN 142 (Microscope)
  • Infinity Plan optics in a stable trinocular frame designed for fluorescence microscopy.
  • 3 W LED transmitted illumination and 5 W LED epi-fluorescence incident illumination.
  • Professional Köhler illumination with adjustable field diaphragm.
  • Height-adjustable, centerable Abbe condenser (NA 1.25) with adjustable aperture diaphragm.
  • Large mechanical XY stage with ergonomic coaxial coarse and fine focusing knobs on both sides for rapid and precise sample positioning.
  • Filter wheel with up to 6 positions; supplied standard with B / G / UV / V fluorescence filters.


ODC 251 (Tablet camera included in set)
  • Android tablet with 10.5" HD touch display combined with integrated 8 MP CMOS camera (sensor size 1/1.8").
  • 8 MP sensor capable of 4K video recording and high-resolution still images for documentation.
  • Measurement functions (distance and area), automatic white balance and automatic contrast adjustment for efficient workflows.
  • Integrated interfaces and functions: save to USB stick, connect USB mouse, live image output via HDMI, data transfer to PC via USB cable, Ethernet, WiFi and Bluetooth connectivity.


Additional features and options
  • Trinocular tube for binocular inspection and camera connection via C‑mount adapter.
  • Infinity Plan objective set (standard): 4×, 10×, 20×, 40×, 100×.
  • Nosepiece screw-in locations: 5.
  • Coaxial coarse and fine focusing with minimum fine drive 0.002 mm.
  • Wide range of optional accessories: C‑mount adapters, additional cameras, calibration slides, eyepieces, objectives, phase contrast and polarisation units, cleaning kits, travel adapters, etc.


Technical specifications
  • Optical system: Infinity
  • Tube type: Trinocular
  • Ocular magnification: 10×
  • Ocular field of view: 20 mm
  • Standard objectives: 4×, 10×, 20×, 40×, 100×
  • Lens quality: Infinity Plan
  • Nosepiece screw-in locations: 5
  • Illumination: Reflected light, Transmitted light
  • Transmitted light intensity: 3 W (LED)
  • Incident light intensity: 5 W (LED)
  • Fluorescent unit: UV, Violet, Blue, Green (LED)
  • Condenser type: Abbe
  • Condenser aperture: 1.25
  • Condenser mounting: centerable
  • Focusing mechanism: coaxial coarse and fine drive
  • Fine drive minimum: 0.002 mm
  • Display type (camera tablet): HD Touch Screen
  • Display size: 10.5"
  • MCU details (tablet): Rockchip RK3568 Quad-Core
  • Camera sensor: CMOS, colour, 1/1.8"
  • Camera resolution: 8 MP (4K), 30 fps
  • Interfaces: Ethernet, Bluetooth, WiFi, USB 2.0, USB 3.0, HDMI
  • Dimensions (W×D×H): 390×235×620 mm
  • GTIN / EAN: 4045761490918


Characteristics / technical data
  • Model: OBN 142T251 (digital set with ODC 251 tablet camera)
  • Infinity optical system, trinocular tube
  • Standard eyepieces: 10×, FOV 20 mm
  • Objectives included: 4×, 10×, 20×, 40×, 100× (Infinity Plan)
  • Abbe condenser NA 1.25, centerable and height-adjustable
  • LED transmitted illumination 3 W; LED epi-fluorescence 5 W
  • Filter wheel up to 6 positions (standard B / G / UV / V filters)
  • Tablet camera ODC 251: 10.5" HD touch, 8 MP CMOS (1/1.8"), 4K, 30 fps
  • Interfaces: Ethernet, WiFi, Bluetooth, USB 2.0/3.0, HDMI
  • Fine drive resolution: 0.002 mm
  • Dimensions: 390 × 235 × 620 mm
  • GTIN / EAN: 4045761490918
