Optical video microscope OKO 178T251
digitalinspectionlaboratory

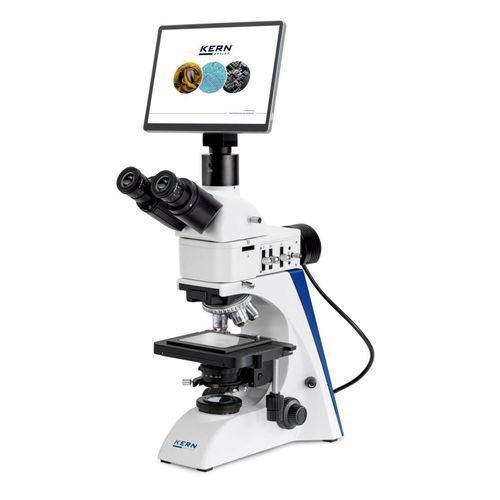

Optical video microscope - OKO 178T251 - KERN & SOHN - digital / inspection / laboratory
Optical video microscope - OKO 178T251 - KERN & SOHN - digital / inspection / laboratory
Add to favorites
Compare this product
Go to the KERN & SOHN website for more information

Characteristics

Type
optical, digital
Applications
inspection, laboratory, for materials research
Ergonomics
touchscreen tablet
Microscope head
trinocular
Quality of the objectives
infinity corrected, plan
Observation technique
polarized
Configuration
benchtop
Light source
LED, with LED light
Options and accessories
with LCD screen, USB, with USB port, wireless
Other characteristics
WiFi, Bluetooth, high-definition, digital camera
Magnification

Max.: 500 unit

Min.: 50 unit

Length

39 cm
(15.4 in)

Width

23.5 cm
(9.3 in)

Height

62 cm
(24.4 in)

Description

Overview
  • Digital set combining the KERN OKO 178 metallurgical microscope with the KERN ODC 251 tablet microscope camera and a C‑mount adapter; intended for metallurgical inspection, material testing and surface analysis in industrial laboratories.


OKO 178 (microscope)
  • Professional metallurgical trinocular microscope for metal inspection and surface analysis.
  • Combined LED incident and LED transmitted illumination.
  • Height‑adjustable, centreable Abbe condenser NA 1.25 with field diaphragm for Köhler illumination.
  • Open mechanical cross stage and simple polarising unit (analyser and polariser) included.


ODC 251 (tablet microscope camera)
  • Android tablet with 10.5" HD touch display and integrated 8 MP (1/1.8") CMOS sensor; compatible with trinocular microscopes via C‑mount adapter.
  • 4K video recording and live image streaming to the tablet for laboratory monitoring, quality control and training.
  • High‑resolution image capture, measurement tools (distance and area), automatic white balance and automatic contrast adjustment.
  • Interfaces: USB (data transfer and storage on USB stick), USB mouse support, HDMI output, Ethernet, Bluetooth, Wi‑Fi.


Technical data / specifications
  • Optical system: Infinity
  • Tubetype: Trinocular
  • Eyepieces: 10×, field 22 mm
  • Objectives (standard): 5×, 10×, 20×, 50× (Infinity Plan)
  • Nosepiece: 5 screw‑in positions
  • Illumination: LED incident and LED transmitted (each 5 W)
  • Condenser: Abbe, NA 1.25, centreable
  • Focusing: coaxial coarse and fine; fine drive min. 0.002 mm
  • Camera sensor: CMOS 1/1.8", 8 MP (4K), 30 fps
  • Tablet display: 10.5" HD touch screen; MCU Rockchip RK3568 Quad‑Core
  • Interfaces: Ethernet, Bluetooth, Wi‑Fi, USB 2.0/3.0, HDMI
  • Dimensions (W×D×H): 390×235×620 mm
  • GTIN / EAN: 4045761490949
