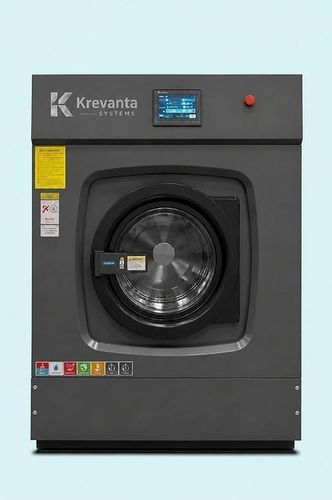

Front-loading washer-extractor KS-W50

Overview
The KS-W50 industrial washer-extractor is a 50 kg nominal-capacity machine designed for continuous heavy-duty laundry operations. It features a soft-mounted suspension, SUS304 stainless-steel inner drum and outer tub, and an intelligent microprocessor control with VFD for precise cycle management and energy-efficient operation.

Applications
Suitable for hospitals, hotel laundries, commercial laundry plants, textile rental services, industrial laundries and healthcare facilities handling large daily laundry volumes where high extraction efficiency and reliable operation are required.

Key features

• Nominal capacity 50 kg; optimal wash load 42–45 kg
• SUS304 stainless steel drum and outer tub for corrosion resistance
• Soft-mounted suspension for reduced vibration and floor loading
• Variable Frequency Drive (VFD) for smooth acceleration and precise speed control
• Electric or steam heating options
• Programmable microprocessor control with multiple wash programs
• High extraction: up to 700 RPM (G-factor 266) to reduce residual moisture
• Designed for easy maintenance and long service life

Technical specifications
Model: KS-W50
Nominal Capacity: 50 kg
Optimal Wash Load: 42–45 kg
Drum Diameter: 970 mm
Drum Depth: 680 mm
Motor Power: 5.5 kW
Inverter Power: 7.5 kW
Wash Speed: 35 RPM
Maximum Extraction Speed: 700 RPM
G-Factor: 266
Heating Method: Electric / Steam
Electric Heating Power: 24 kW
Steam Consumption: 45 kg/h
Steam Pipe Diameter: 33 mm
Drain Outlet: 140 mm
Water Inlet: 40.5 mm
Compressed Air Pressure: 0.4–0.6 MPa
Water Consumption: ≤650 kg per Cycle
Noise Level: ≤65 dB
Power Supply: 380 V / 3 Phase / 50 Hz
Machine Dimensions: 1500 × 1450 × 1900 mm
Machine Volume: 4.1 m³
Net Weight: 1,450 kg

• Model: KS-W50
• Nominal Capacity: 50 kg
• Optimal Wash Load: 42–45 kg
• Drum Diameter: 970 mm
• Drum Depth: 680 mm
• Motor Power: 5.5 kW
• Inverter Power: 7.5 kW
• Wash Speed: 35 RPM
• Maximum Extraction Speed: 700 RPM
• G-Factor: 266
• Heating Method: Electric / Steam
• Electric Heating Power: 24 kW
• Steam Consumption: 45 kg/h
• Steam Pipe Diameter: 33 mm
• Drain Outlet: 140 mm
• Water Inlet: 40.5 mm
• Compressed Air Pressure: 0.4–0.6 MPa
• Water Consumption: ≤650 kg per Cycle
• Noise Level: ≤65 dB
• Power Supply: 380 V / 3 Phase / 50 Hz
• Machine Dimensions: 1500 × 1450 × 1900 mm
• Machine Volume: 4.1 m³
• Net Weight: 1,450 kg
