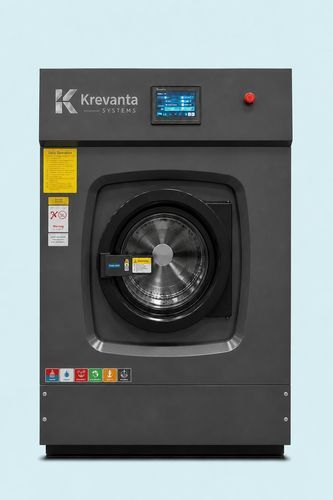

Front-loading washer-extractor KS-W20

Product Overview
The KS-W20 industrial washer extractor is a front-loading, fully automatic machine designed for medium-capacity commercial and industrial laundry operations. Constructed with an SUS304 stainless steel drum and tub and fitted with a soft-mounted suspension, the KS-W20 delivers high extraction performance and continuous-duty reliability. Its intelligent microprocessor controller and Variable Frequency Drive (VFD) enable programmable cycles, smooth acceleration, and optimized water and energy use.

Applications & Suitability

• Hospitals and healthcare facilities
• Hotels and hospitality laundries
• Commercial and industrial laundries
• Textile rental and uniform services
• Educational institutions
• Industrial plants requiring continuous operation

Technical Specifications

• Model: KS-W20
• Nominal Capacity: 20 kg
• Optimal Wash Load: 17–18 kg
• Drum Diameter: 750 mm
• Drum Depth: 455 mm
• Motor Power: 2.2 kW
• Inverter Power: 2.2 kW
• Wash Speed: 37 RPM
• Maximum Extraction Speed: 800 RPM
• G-Factor: 336
• Heating Method: Electric
• Electric Heating Power: 6 kW
• Drain Outlet: 60 mm
• Water Inlet: 20.75 mm
• Water Consumption: ≤450 kg per Cycle
• Noise Level: ≤65 dB
• Power Supply: 380 V / 3 Phase / 50 Hz
• Machine Dimensions: 1100 × 1050 × 1580 mm
• Net Weight: 680 kg

Key Features

• Construction: SUS304 stainless steel inner drum and outer tub for corrosion resistance
• Suspension: Soft-mounted suspension system to reduce vibration during extraction
• Control: Intelligent microprocessor controller with VFD for programmable cycles and smooth operation
• Performance: High-speed extraction (up to 800 RPM) to reduce residual moisture and drying time
• Operation: Designed for continuous-duty operation with low maintenance requirements
