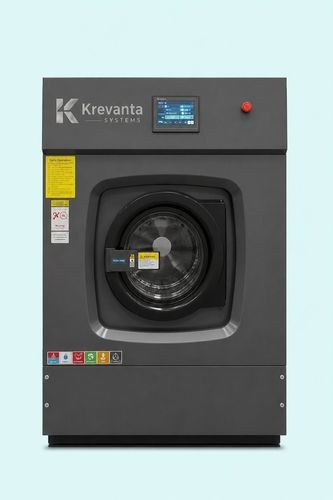

Front-loading washer-extractor KS-W25

Product overview
The KS-W25 industrial washer extractor is a fully automatic front-loading machine designed for medium to high-volume commercial laundry operations. It features a soft-mounted suspension and SUS304 stainless steel inner drum and outer tub. The machine is equipped with an intelligent microprocessor control and a Variable Frequency Drive (VFD) to provide programmable wash programs, controlled acceleration, and optimized water and energy use. High-speed extraction (up to 800 RPM) reduces residual moisture and shortens drying time while the robust electrical heating option supports process flexibility.

Applications & Benefits

• Hospitals
• Hotels
• Commercial laundries
• Healthcare facilities
• Educational institutions
• Textile rental companies
• Garment manufacturing units

Technical specifications

• Model: KS-W25
• Nominal capacity: 25 kg
• Optimal wash load: 22–23 kg
• Drum diameter: 750 mm
• Drum depth: 555 mm
• Motor power: 2.2 kW
• Inverter power: 3.7 kW
• Wash speed: 37 RPM
• Maximum extraction speed: 800 RPM
• G-factor: 336
• Heating method: Electric
• Electric heating power: 9 kW
• Drain outlet: 60 mm
• Water inlet: 20.75 mm
• Water consumption: ≤500 kg per cycle
• Noise level: ≤65 dB
• Power supply: 380 V / 3 Phase / 50 Hz
• Machine dimensions: 1150 × 1050 × 1580 mm
• Net weight: 730 kg
