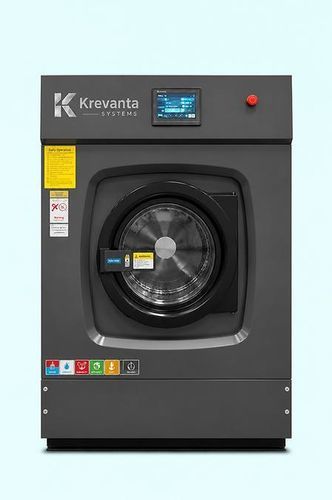

Front-loading washer-extractor KS-W30

Product Overview
The KS-W30 Industrial Washer Extractor is a front-loading, fully automatic washer-extractor designed for high-volume commercial and industrial laundry operations. Featuring a soft-mounted suspension, SUS304 stainless steel drum and tub, and an advanced Variable Frequency Drive (VFD), the KS-W30 provides high extraction performance, low vibration and consistent cycle control for continuous-duty use.

Technical Specifications
Model: KS-W30
Nominal Capacity: 30 kg
Optimal Wash Load: 27–28 kg
Drum Diameter: 800 mm
Drum Depth: 580 mm
Motor Power: 3.0 kW
Inverter Power: 5.5 kW
Wash Speed: 37 RPM
Maximum Extraction Speed: 800 RPM
G-Factor: 312
Heating Method: Electric (12 kW)
Drain Outlet: 60 mm
Water Inlet: 20.75 mm
Water Consumption: ≤500 kg per Cycle
Noise Level: ≤75 dB
Power Supply: 380 V / 3 Phase / 50 Hz
Machine Dimensions: 1260 × 1160 × 1600 mm
Machine Volume: 2.5 m³
Net Weight: 800 kg

Applications & Benefits
Suitable for hospitals, hotels, healthcare facilities, commercial laundries, textile rental companies, garment manufacturers and industrial laundry plants. The KS-W30 offers programmable cycles via intelligent microprocessor control, optimized water and energy usage, high extraction efficiency to reduce drying time, low vibration for stable installation and simplified maintenance for reduced downtime.

Features / Technical Specifications

• Model: KS-W30
• Nominal Capacity: 30 kg
• Optimal Wash Load: 27–28 kg
• Drum Diameter: 800 mm
• Drum Depth: 580 mm
• Motor Power: 3.0 kW
• Inverter Power: 5.5 kW
• Wash Speed: 37 RPM
• Maximum Extraction Speed: 800 RPM
• G-Factor: 312
• Heating Method: Electric
• Electric Heating Power: 12 kW
• Drain Outlet: 60 mm
• Water Inlet: 20.75 mm
• Water Consumption: ≤500 kg per Cycle
• Noise Level: ≤75 dB
• Power Supply: 380 V / 3 Phase / 50 Hz
• Machine Dimensions: 1260 × 1160 × 1600 mm
• Machine Volume: 2.5 m³
• Net Weight: 800 kg
