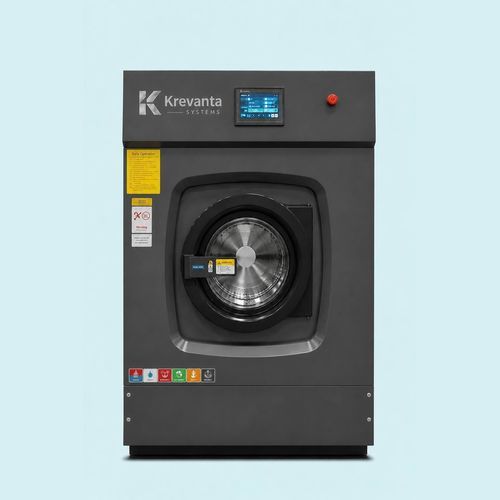

Front-loading washer-extractor KS-W15

Product Overview
The KS-W15 industrial washer extractor is a fully automatic front-loading machine engineered for commercial and institutional laundry operations. Featuring a soft-mounted suspension and a SUS304 stainless steel drum, the KS-W15 provides reliable washing performance, effective extraction and extended service life.

Control & Efficiency
Equipped with an advanced microprocessor control system and a Variable Frequency Drive (VFD), the machine offers programmable wash cycles, smooth start/stop operation and reduced utility consumption. Its compact footprint and industrial-grade components make it suitable for continuous use in hospitals, hotels, healthcare facilities, commercial laundries, educational institutions and textile rental services.

Applications & Benefits
The KS-W15 is designed for professional laundry environments where hygiene, productivity and operational efficiency are essential. Key advantages include low vibration, energy-efficient extraction, simplified maintenance and a capacity range within the KS-W series for scalable installation options.

Technical Specifications (table)
Specification | Value
Model | KS-W15
Nominal Capacity | 15 kg
Optimal Wash Load | 12–13 kg
Drum Diameter | 750 mm
Drum Depth | 355 mm
Motor Power | 1.5 kW
Inverter Power | 2.2 kW
Wash Speed | 37 RPM
Maximum Extraction Speed | 800 RPM
G-Factor | 336
Heating Method | Electric
Electric Heating Power | 6 kW
Drain Outlet | 60 mm
Water Inlet | 20.75 mm
Water Consumption | ≤450 kg per Cycle
Noise Level | ≤65 dB
Power Supply | 380V / 3 Phase / 50Hz
Machine Dimensions | 1100 × 950 × 1580 mm
Net Weight | 630 kg

Technical features / specifications

• Model: KS-W15
• Nominal capacity: 15 kg
• Optimal wash load: 12–13 kg
• Drum diameter: 750 mm
• Drum depth: 355 mm
• Motor power: 1.5 kW
• Inverter power: 2.2 kW
• Wash speed: 37 RPM
• Maximum extraction speed: 800 RPM
• G-Factor: 336
• Heating method: Electric
• Electric heating power: 6 kW
• Drain outlet: 60 mm
• Water inlet: 20.75 mm
• Water consumption: ≤450 kg per Cycle
• Noise level: ≤65 dB
• Power supply: 380V / 3 Phase / 50Hz
• Machine dimensions (W × D × H): 1100 × 950 × 1580 mm
• Net weight: 630 kg
• Series capacity range: 15 kg to 50 kg
