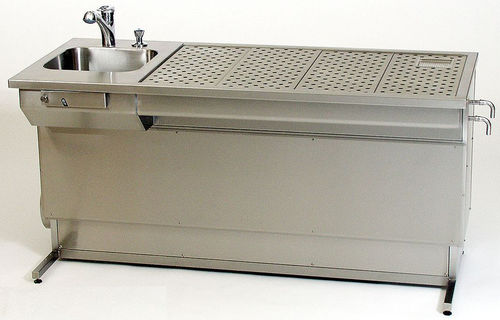

The down-draft grossing table is equipped with air down draft system. This specialized work table guarantees a laboratory environment free of pollutants while slicing and preparing histological slide preparations and is even well suited for small dissections. Airflow travels over the entire working area and is vacuumed out downwards, which provides optimal removal of unsanitary vapours. MAC (maximum allowable concentration) values for formalin are below target throughout the entire vacuum-effected area. The cutting table is to be connected to a side-mounted exhaust system - provided by the customer.
Workstations with a large surface area
Entire construction is made of stainless steel
Height-adjustable from 750 to 1000 mm
Stable, self-supporting undercarriage with adjustable legs
Low overall height of the upper structure increases leg room
Work surface includes a seamlessly welded basin measuring 400 x 400 x 200 mm
Basin includes integrated air vacuum
Basin can be mounted to the right or left side
Very sturdy, perforated and insertable working plates
Integrated sprinkler system with adjustable valve for bath sanitation located underneath the perforated working plates
Formalin sink with sieve insert
Mixing tap with detachable cold and hot water shower
Exhaust duct left or right side
Dimensions W/D/H:1750 x 750 x 750 / 1000 mm
Exhaust air capacity:min. 950 m³/h
Perforated working area:approx. 1210 x 670 mm
Cold /warm water connection:1/2"
Waste water connection:2"
Exhaust duct diameter:200 mm
