Our new BASIC line aims to improve medical diagnostics, standards and treatments in Africa and other continents lacking of basic medical equipment and healthcare provision. The BASIC line is characterized by easy and reliable solutions at economic prices without impairing the typical KUGEL medical quality MADE IN GERMANY which we are known for around the world

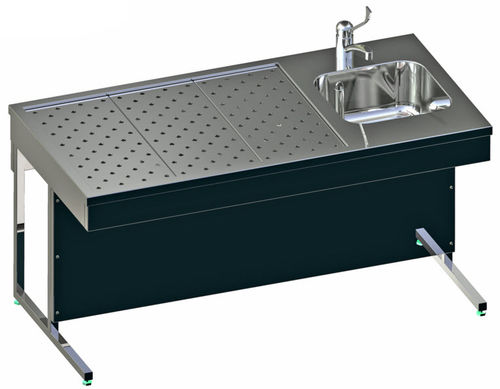

This specialized working table is part of our new BASIC line and guarantees for a laboratory environment free of pollutants while slicing and preparing histological slide preparations. Airflow travels throughout the entire working area and is vacuumed out downwards, which provides optimal removal of unsanitary vapors. MAC (maximum allowable concentration) values for formalin are below target throughout the entire vacuum-effected working area.
The grossing table is to be connected to a side-mounted exhaust system provided by the customer.
Entire construction made of stainless steel
Sturdy, self-supporting undercarriage with adjustable legs
Low overall height of the upper structure increases leg room
Work surface includes a seamlessly welded basin measuring 400 x 400 x 200 mm
With mixing tap
Very sturdy, perforated and insertable working plates (approx. 10 mm deeper than circumferential border) drilling D 17, T 60
Without side panels
An illumination frame is separately available at an extra charge.
All solutions from our BASIC line are marked with the BASIC line-Logo
TECHNICAL DATA
Dimensions W/D/H: 1500 x 750 x 750 mm
Exhaust air capacity: min. 750 m³/h
Air speed onto the perforated surface: min. 0.4 m/sec
Material: brushed stainless steel (1.4301 - ANSI 304)
Waste water connection: 2"
