tissue staining laboratory workstation / for sample preparation / floor-standing / with downdraft ventilation
FT-1000

Add to MyMedicalExpo favorites
Compare this product Don’t compare this product
tissue staining laboratory workstation / for sample preparation / floor-standing / with downdraft ventilation tissue staining laboratory workstation / for sample preparation / floor-standing / with downdraft ventilation - FT-1000
{{requestButtons}}

Characteristics

  • Applications:

    tissue staining

  • Function:

    for sample preparation

  • Configuration:

    floor-standing

  • Other characteristics:

    with downdraft ventilation

Description

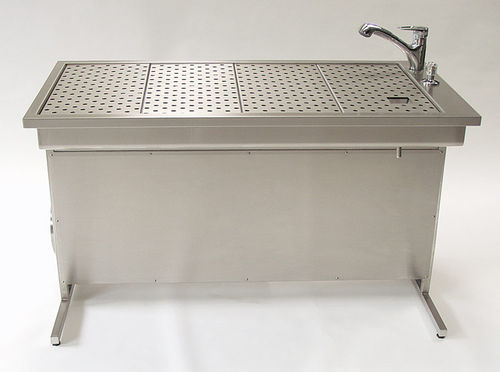

Staining Table - Wall Design FT-1000
The working table for staining is equipped with air down draft system. This specialized worktable guarantees a laboratory environment free of pollutants while slicing and preparing histological slide preparations, and is even well suited for small dissections. Airflow travels over the entire working area and is vacuumed out downwards, which provides optimal removal of unsanitary vapours. MAC (maximum allowable concentration) values for formalin are below target throughout the entire vacuum-effected area. The cutting table is to be connected to a side-mounted exhaust system.

Entire construction is made of stainless steel (material no. 1.4301 – ANSI 304)
Stable, self-supporting undercarriage with adjustable legs
Low overall height of the upper structure increases leg room
Very stable perforated working plates (approx. 10 mm lower than the circumferential edging), perforation D17, T60
Air speed onto the perforated surface: min. 0.4m/sec
Integrated connecting pieces with flow rate Regulation
Integrated sprinkler system below perforated working plates with regulating valve
Connecting pieces for exhaust air with right or left side option
