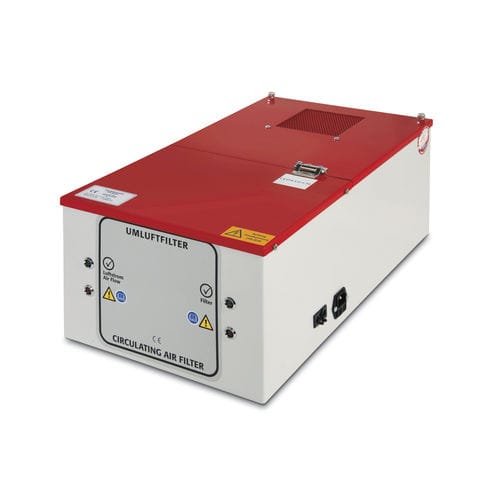

Air filter unit UFA-2030

for security storage cabinets

The plug circulating air filter box ensures a safe technical ventilation of the safety cabinets in work areas according to the requirements of TRbF 20 attachment L point 4.1. The air filter box type UFA-2030 is able to hold back, solvent-vapours (hydrocarbons) until a filter saturation up to more than 99,999%, under normal conditions as well as, at a simulated solvent-leakage in the safety cabinet. Direct emission of the cleaned exhaust air from the safety cabinet into the work areas. The box is ideal for the usage in working areas because of its low loudness of 39 dB (A). TECHNICAL DATA Dimensions W/D/H:305 x 555 x 210 mm Weight incl. filter:15 kg Motor rating:0,01 kW Voltage/ Frequency:230 V / 50 Hz Current unput:0,09 A Noise level:39 dB (a) Revolutions:2450 Upm Color housing:light grey RAL 7035 Color cover:red RAL 3002
