Histopathology laboratory workstation EBA-600

for sample preparationbenchtopwith downdraft ventilation

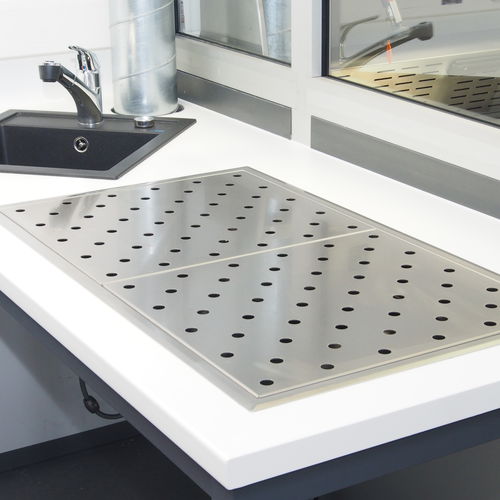

This specialized table with exhaustion guarantees a laboratory environment free of pollutants while slicing and preparing histological slide preparations. Airflow travels over the entire working area and is vacuumed out backwards, which provides optimal removal of unsanitary vapours. MAC (maximum allowable concentration) values for formalin are below target throughout the entire vacuum-effected area.• Entire construction is made of stainless steel (material no. 1.4301 – ANSI 304)• Very sturdy, perforated working plate made of stainless steel, D17, T60• Exhaust air capacity with the perforated working surface min. 0,4 m/sec• Exhaust duct is on the top Available in different dimensions. TECHNICAL DATA Dimensions W/D/H: 600 x 500 mm Exhaust Air capacity: Min. 200 m³/h Material: Stainless steel (material no. 14301 - ANSI 304) Waste water connection: DN 50 Exhaust duct diameter: DN 160
