Blood bank refrigerator BBR-02

cabineton casters1-door

Overview

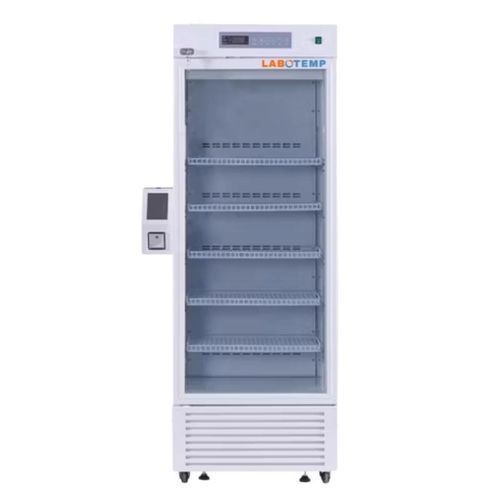

The Labotemp BBR-02 blood bank refrigerator provides monitored, regulated storage for blood, vaccines and biological samples. It offers 300 L capacity, microprocessor control with digital display and an adjustable 2–8°C range. The 304 stainless-steel interior and galvanized sprayed exterior support cleaning and infection control, suitable for hospitals, blood banks, clinical laboratories and research facilities.

Key features

• Microprocessor control with digital temperature display
• Audible and visual alarms for high/low temperature and door ajar
• Huayi compressor for stable cooling performance
• Air cooling system with electronic thermostat and condensing fan (Chinese brand)
• 304 stainless-steel inner chamber for hygiene and easy cleaning
• Galvanized sprayed exterior for corrosion resistance
• Secure door lock for sample protection
• Energy input: 300W
• Operating range: ambient 16–32°C, humidity 20–80%

Applications

• Storage of blood products, vaccines and medicines in hospitals and blood banks
• Preservation of clinical and pharmaceutical samples in laboratories and research centers

Technical specifications

• Model: BBR-02
• Capacity: 300 L (10.59 cu.ft)
• Temperature range: 2–8°C (adjustable)
• Compressor: Huayi compressor
• Voltage: 220V 50Hz
• Power input: 300W
• Condensing fan: Chinese brand fan
• Cooling type: Air cooling
• Thermostat: Electronic
• Control system: Microprocessor control
• Display: Digital
• Exterior size: 595 × 605 × 1940 mm
• Inner size: 515 × 510 × 1405 mm
• Net weight: 83 kg
• Exterior material: Galvanized sheet sprayed
• Inner material: 304 stainless steel
• Lock: Yes
• Ambient temperature: 16–32°C
• Environmental humidity: 20–80%
• Alarm: Audible and visual for high/low temperature and door ajar
