Blood bank refrigerator BBR-08

hospitalemergency departmentlaboratory

Overview

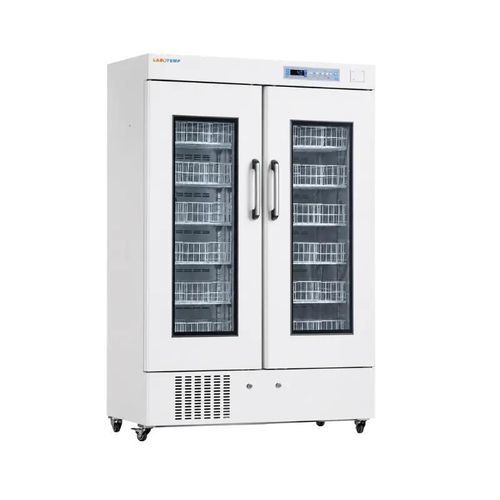

Labotemp Blood Bank Refrigerator BBR-08 is a high-capacity medical refrigerator designed for safe storage of whole blood, blood components and plasma at 4 ±1°C. It provides 658 L usable volume, 36 storage baskets and forced-air cooling with microprocessor control and NTC sensor to ensure stable and uniform temperature distribution.

Design & Performance
Equipped with an advanced forced-air cooling system for uniform temperature distribution, a microprocessor controller, NTC sensor, and a digital display with 0.1°C resolution for accurate monitoring. Built for continuous medical operation with a high-efficiency SECOP compressor, automatic defrost, and eco-friendly R290 refrigerant. Double self-closing heated glass doors reduce condensation while allowing clear visibility of stored products.

Key Benefits

• 658 L capacity with 36 storage baskets for organized, high-volume blood inventory management.
• Precise 4 ±1°C temperature control suitable for whole blood and blood components.
• Comprehensive protection features including 72-hour backup battery, audible/visual alarms, password protection, door lock, sensor fault monitoring, and power failure protection.
• Stainless steel interior, service-free drainage system, automatic fan control, LED lighting, and heavy-duty lockable castors for durability and ease of use.

Features

• 36 blood storage baskets
• Maintains a stable 4 ±1°C storage temperature
• Large 658 L chamber accommodates up to 504 blood bags (300 ml)
• Microprocessor controller with digital display (0.1°C resolution)
• NTC temperature sensor
• Forced-air cooling for uniform distribution
• Automatic defrost
• Integrated temperature data logger for continuous recording and traceability
• SECOP compressor with eco-friendly R290 (120 g) refrigerant
• Comprehensive alarm system: high/low temperature, power failure (72 h backup), sensor, controller, door ajar, battery error
• Self-closing heated glass doors
• Durable stainless steel interior and coated steel exterior with 60 mm PURF insulation
• LED lighting, door lock, adjustable shelves, test hole, and lockable castors
• Supports remote alarm port and built-in temperature printer; optional USB Data Download Port, RS485 Port, and Temperature Chart Recorder

Applications

• Safe storage of whole blood and blood components at 4 ±1°C in blood banks and transfusion centers
• Inventory management for hospitals, clinical laboratories, and emergency blood storage facilities
• Temperature-controlled preservation supporting blood donation, transfusion, and cross-matching workflows
• Continuous monitored storage with alarm protection for regulated healthcare and quality-controlled environments
• Reliable blood storage for public health institutions, research hospitals, and medical laboratories

Standard Accessories

• Temperature printer
• Remote alarm port

Optional Accessories

• USB data download port
• Temperature chart recorder
• RS485 port

Technical specifications

• Model: BBR-08
• Temperature range: 4 ±1°C
• Ambient temperature: 10–32°C
• Capacity: 658 L (23.24 cu.ft.)
• Interior dimensions (W × D × H): 1100 × 454 × 1325 mm
• Exterior dimensions (W × D × H): 1220 × 635 × 1885 mm
• Net weight: 202 kg
• Noise level: 50 dB
• Blood bag capacity: 396 (450 ml) / 432 (400 ml) / 504 (300 ml)
• Controller: Microprocessor
• Display: Digital
• Sensor: NTC
• Voltage & frequency: 220 V ±10%, 50/60 Hz
• Power: 391 W
• Electrical current: 2.12 A
• Power consumption (24 h): 5.98 kWh
• Alarms: High/Low Temperature, Power Failure (72 h), Sensor Error, Controller Error, Door Ajar, Battery Error
• Refrigeration type: Forced-air cooling
• Defrost: Auto
• Compressor: SECOP × 1
• Refrigerant: R290 (120 g)
• Doors: 2 self-closing heated glass doors
• Inner door: PMMA × 6
• Adjustable shelves: 12
• Baskets: 36
• Interior material: Stainless steel
• Exterior material: Coated steel
• Insulation material: PURF (60 mm)
• Door lock: Yes
• LED lamp: Yes
• Test hole: 1
• Castors: 4
• Package: Plywood box with pallet
• Shipping weight: 257 kg
• Shipping size (W × D × H): 1330 × 750 × 2120 mm
• Shipping volume: 2.11 CBM
