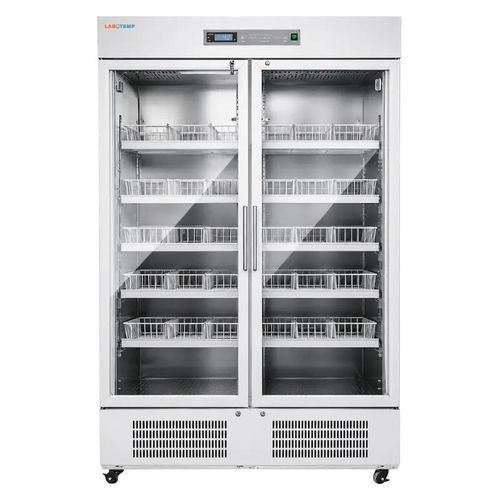

Blood bank refrigerator BBR-07

hospitalfor blood plasmafor laboratory

Product overview
Labotemp blood bank refrigerator BBR-07 is a high-capacity medical refrigeration unit designed for secure, continuous storage of whole blood, plasma, reagents and other temperature-sensitive clinical materials. Intended for hospitals, blood banks, transfusion centers, clinical laboratories and research institutes, the BBR-07 maintains a controlled 4±1°C environment with 0.1°C display accuracy and uniform forced-air circulation to ensure consistent preservation across the chamber.

Design and operation
The unit is engineered for 24/7 clinical use with a microprocessor-based digital controller, automatic defrost, and an energy-efficient refrigeration circuit using R134a (CFC-free). Interior components include a 304 stainless steel lining, heated tempered double-glass doors and an acrylic inner door to limit temperature loss during access. Low-noise EBM condenser fan, integrated LED lighting and heavy-duty caster wheels support efficient operation and handling. Safety is provided by audible and visual alarms for high/low temperature, sensor fault, power failure and door-open conditions.

Features

• Stable 4±1°C storage for blood products
• Double-door layout for organized, high-capacity storage
• High-precision digital temperature display (0.1°C)
• Microprocessor controller for reliable temperature control
• Automatic defrost to prevent frost accumulation
• Forced-air cooling for uniform temperature distribution
• Audible and visual alarm system (high/low temp, sensor fault, power failure, door-open)
• Durable 304 stainless steel interior
• Double-layer electrically heated tempered glass doors to reduce condensation
• Acrylic inner door to minimize temperature loss during door opening
• Low-noise EBM condenser fan
• Energy-efficient, CFC-free refrigerant
• Integrated LED interior lighting
• Multiple adjustable shelves for organized storage
• Heavy-duty caster wheels for mobility

Applications

• Storage of whole blood, plasma, reagents and other temperature-sensitive medical materials
• Designed for blood banks, hospitals, transfusion centers, clinical laboratories and research facilities
• Suitable for regulated healthcare environments requiring continuous monitoring, alarm protection and long-term cold storage reliability

Technical specifications

• Model: BBR-07
• Brand: Labotemp
• Capacity: 660 L
• Temperature range: 4 ±1°C
• Temperature display accuracy: 0.1°C
• Thermostat: Digital microprocessor
• Power supply: 220V 50Hz
• Power: 550 W
• Power consumption: 6.5 kWh/24H
• Insulation thickness: 60 mm
• Defrost method: Automatic
• Shelves: 5 × 2 (adjustable)
• Doors: 2 (double-door)
• Refrigerant: R134a (CFC-free)
• Noise level: 55 dB(A)
• Lock: Yes
• Wheels: Heavy-duty caster wheels
• Alarm: Sound & light (high/low temp, sensor fault, power failure, door-open)
• Display: LED
• Cooling method: Forced air cooling
• Inner material: 304 stainless steel
• Compressors: 1
• USB port: Yes
• Inner size (W×D×H): 985 × 565 × 1595 mm
• Outer size (W×D×H): 1100 × 685 × 2080 mm
• Shipping size (W×D×H): 1170 × 755 × 2190 mm
• Net weight: 105 kg
• Gross weight: 210 kg
