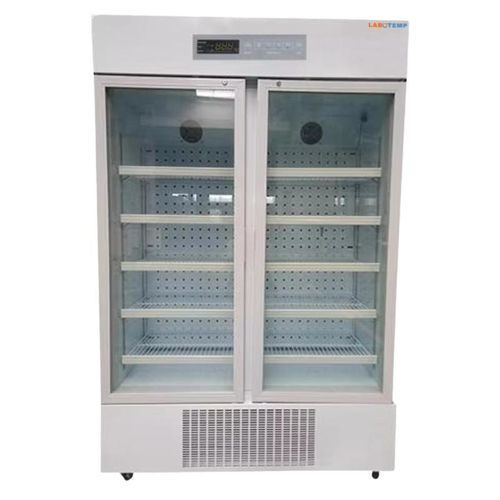

Blood bank refrigerator BBR-04

for vaccinesfor hospitalsfor blood plasma

Product overview
The Labotemp BBR-04 Blood Bank Refrigerator provides precise, uniform and reliable cold storage for blood products and biological samples. With a 560 L capacity and a stable temperature range of 4±1°C, it is engineered for continuous operation in hospitals, blood banks and research laboratories.

Why choose Labotemp Blood Bank Refrigerator BBR-04?

• Large 560 L capacity optimized for blood units and systematic sample organisation
• Ultra-stable temperature control to preserve clinical integrity of stored products
• Fast temperature recovery and balanced airflow to maintain conditions after door openings
• Digital controls and audible/visual alarms to simplify monitoring and regulatory compliance

Features

• High-accuracy microprocessor control with digital temperature display
• Equipped with Secop compressor for reliable performance
• Germany EBM condensing fan for efficient air circulation
• Air cooling system with electronic thermostat
• Audible and visual alarms for high/low temperature and door ajar
• Internal chamber in 304 stainless steel for hygiene and durability
• Galvanized sprayed exterior for corrosion resistance
• Lockable door for sample security
• Energy-efficient 490 W input power
• Operates at ambient 16–32°C and humidity 20–80%
• Internal memory for continuous data logging
• Wi‑Fi for remote monitoring
• Mobile app connectivity for real-time monitoring and alerts
• USB port for convenient data export
• Battery-backed alarm controller with up to 8 hours backup operation

Applications

• Storage of blood units, plasma, platelets and other transfusion products in blood banks
• Preservation of vaccines, reagents and clinical samples in hospitals and diagnostic labs

Technical specifications

• Model: BBR-04
• Capacity: 560 / 19.78 (L / cu.ft)
• Temperature range: 4±1°C, adjustable
• Compressor: Secop
• Voltage: 110V / 220V 50/60Hz
• Input power: 490 Watt
• Condensing fan: Germany EBM fan
• Cooling type: Air cooling
• Thermostat: Electronic
• Display: Digital display
• Exterior size: 1200 x 650 x 1890 mm
• Inner size: 1112 x 560 x 1230 mm
• Net weight: 132 kg
• Exterior material: Galvanized sheet sprayed
• Inner material: 304 stainless steel
• Lock key: Yes
• Control system: Microprocessor control
• Ambient temperature (operation): 16-32°C
• Environmental humidity (operation): 20-80%
• Alarm: Audible and visual alarm for high/low temperature, door ajar
• Gross weight: 45 kg
• Package size: 775 x 502 x 672 mm
