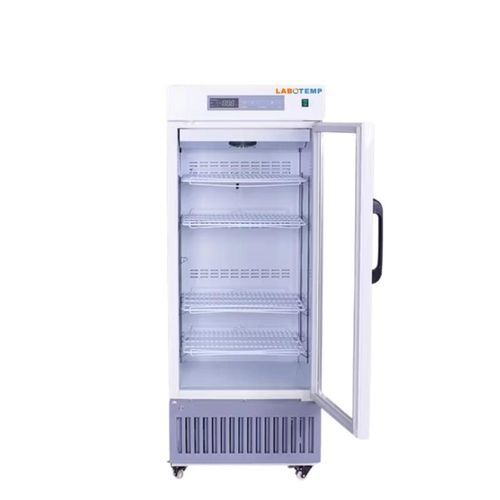

Blood bank refrigerator BBR-06

for vaccineshospitallaboratory

Overview
The Labotemp BBR-06 Blood Bank Refrigerator delivers accurate and reliable cooling with a 288L capacity and a stable 4±1°C temperature range. Its Secop compressor, uniform cooling system, and LCD digital display ensure precise, energy-efficient temperature control. Built with a 304 stainless-steel inner chamber and powder-coated steel exterior, it offers durability, hygiene, and easy maintenance—making it ideal for hospitals, laboratories, and medical research facilities.

Key benefits

• Precision Cooling: maintains strict 4±1°C stability with high-accuracy sensors.
• Efficient SECOP Compressor: delivers strong cooling with low energy use and long reliability.
• Smart Microprocessor Control: ensures fast temperature correction and continuous compliance.
• Medical-Grade Stainless Steel Interior: hygienic, durable, and corrosion-resistant construction.
• Optimized Thermal Uniformity: ensures even temperature distribution across all storage zones.

Features

• SECOP compressor for reliable and energy-efficient performance.
• Fluorine-free, environmentally friendly refrigerant.
• Electronic temperature control with digital data display (LCD).
• PTC probe for precise temperature sensing.
• EBM condenser fan for efficient air circulation.
• Audible and visual alarm for temperature fluctuations.
• 304 stainless steel inner chamber with powder-coated steel exterior.
• One stainless-steel shelf and one stainless-steel inner door.
• 120mm foaming insulation for superior temperature stability.
• Equipped with balance hole (Ø18mm) and 4 castors for mobility.

Applications

• Suitable for storage of vaccines, reagents, blood products and other biological materials in laboratories, hospitals, and research centers.
• Ensures accurate and stable temperature control for reliable pharmaceutical and biomedical preservation.

Technical specifications

• Model: BBR-06
• Capacity: 288L
• Temperature Range: 2-8°C, adjustable (typical operation 4±1°C)
• Voltage: 220V/50Hz, 220V/60Hz
• Input Power: 300W
• External dimensions: 605 × 675 × 1610 mm
• Internal dimensions: 525 × 575 × 1050 mm
• Alarm: Audible and visual alarm
• Net weight / Gross weight: 94 / 105 kg
• Power consumption: 3.9 kW·h / 24h
• Protect Grade: I/B
• Climate type: N
• Refrigerant: Fluorine-free environmental protection refrigerant
• Compressor: SECOP
• Refrigeration system: Single compressor refrigeration system
• Temperature control: Electronic temperature control
• Temperature display: Digital data display
• Probe: PTC
• Condenser fans: EBM fan
• Exterior Material: Powder coated steel plate
• Interior Material: Stainless Steel 304
• Number of shelves / inner doors: 1 shelf / 1 inner door (304 stainless steel)
• Thickness of foaming layer: 120 mm
• Balance hole: 1 (Diameter 18 mm)
• Castors: 4
