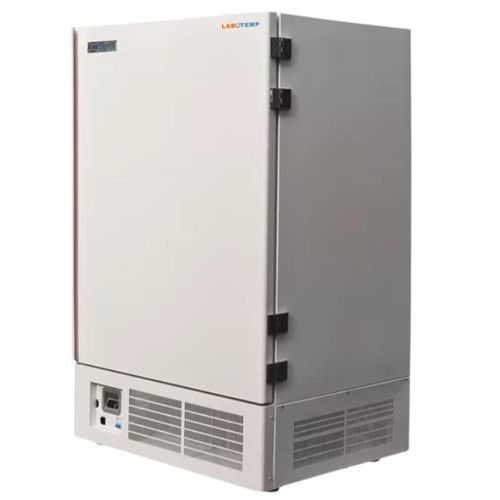

Vaccine freezer LDF-05

for hospitalslaboratoryfor biopharmaceutical applications

Product overview
Labotemp Laboratory and Deep Freezer LDF-05 provides 508L capacity and an adjustable temperature range from -15°C to -40°C, engineered for reliable long-term storage of biological samples, vaccines and other temperature-sensitive materials in laboratories, hospitals and research facilities. The unit features microprocessor temperature control, manual defrost, and audible/visual alarms for protection. Constructed with a 304 stainless-steel interior, powder-coated steel exterior and 150mm foaming insulation to ensure thermal stability and durability. Available for 220V/50Hz or 110V/60Hz supply.

Why choose Laboratory and Deep Freezer LDF-05

• Large-capacity storage: 508L with multi-door layout for organized sample management.
• Thermal stability: 150mm foaming insulation and stainless-steel chamber reduce temperature fluctuations.
• Accurate monitoring: microprocessor control, PTC probe and digital display enable precise temperature control and logging readiness.

Features

• 508L capacity suitable for high-volume sample preservation.
• Electronic temperature control with digital display and adjustable set points.
• 304 stainless-steel inner liner and 150mm insulation for improved thermal performance.
• Audible and visual alarms (high/low temperature adjustable; probe failure alarm).
• EBM condenser fan and SECOP compressor for efficient refrigeration and long service life.
• Castors and balance hole (Ø18mm) for handling and installation.

Applications

• Designed for laboratories, hospitals, research centers and pharmaceutical production for storage of biological samples, reagents, vaccines and other temperature-sensitive materials.

Technical specifications

• Model: LDF-05
• Capacity: 508L
• Temperature range: -15°C to -40°C (adjustable)
• Temperature stability: ±4°C
• Compressor: SECOP
• Voltage: 220V/50Hz or 110V/60Hz
• Alarm: Visual / Acoustic (High / Low Temperature adjustable), Probe failure alarm
• Input power: 750W
• Power consumption: 8.1 kW/24h
• Refrigerant: MIXED
• Temperature control: Electronic (microprocessor)
• Protection grade: I/B
• Climate type: N
• Temperature display: Digital
• Probe: PTC
• Condenser fans: EBM
• Exterior material: Powder-coated galvanized steel
• Interior material: Stainless steel 304
• Shelves / inner doors: 3 shelves / 4 inner doors (304 stainless steel)
• Foaming thickness: 150mm
• Balance hole: 1 (Ø18mm)
• Castors: 4
• Net/Gross weight: 250/300 kg
• External dimensions: 850 × 1030 × 1860 mm
• Internal dimensions: 910 × 1090 × 1995 mm
• Package size: 955 × 1110 × 2145 mm
• Packing material: Plywood box
