Vaccine freezer LDF-13

blood bankfor blood plasmalaboratory

Product Overview

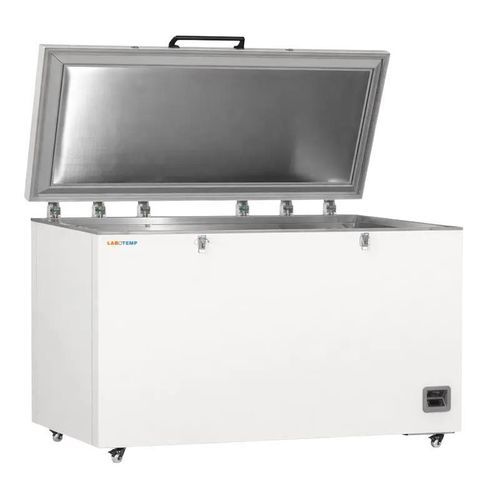

Labotemp Laboratory Freezer LDF-13 is a 485-litre chest freezer designed for reliable long-term storage of vaccines, blood plasma, reagents and biological samples in laboratories, blood banks and clinical facilities. Operating between -20°C and -40°C, the LDF-13 uses a CUBIGEL compressor with eco-friendly R290 refrigerant and high-efficiency direct cooling to provide stable temperature control. Temperature is monitored by an NTC sensor and a microprocessor controller with digital display (0.1°C resolution). Construction includes a stainless steel interior, ≥100 mm PURF insulation and a foamed solid door to ensure thermal integrity.

Key benefits for medical and laboratory use

• Large 485 L capacity suitable for vaccines, plasma and bulk sample storage
• Stable mid-range freezing down to -40°C with CUBIGEL compressor and R290 refrigerant
• Multi-level alarm system and 12-hour power-failure backup to protect sensitive samples

Features

• 12-hour power failure alarm (backup)
• Microprocessor control with digital display for precise regulation
• High-efficiency compressor ensuring consistent cooling output
• Energy-optimized design for lower daily power consumption (3.53 kWh/24h)
• Low noise operation (~55 dB) suitable for laboratory environments
• Durable coated steel exterior and stainless steel interior
• Multi-layer insulation (PURF ≥100 mm) to reduce thermal loss
• Integrated alarms: high/low temperature, sensor error, controller error
• Mobility with four heavy-duty castors and castor stoppers; service-free drainage

Applications

• Storage of plasma, reagents, enzymes and biological samples in research laboratories, blood banks and clinics
• Pharmaceutical storage and sample preservation workflows requiring monitored mid-range freezing and power-failure protection

Technical specifications

• Temperature Range: -20 ~ -40 °C
• Ambient Temperature: 10 ~ 32 °C
• Capacity: 485 L / 17.13 cu.ft
• Interior Dimensions (W×D×H): 1455 × 525 × 665 mm
• Exterior Dimensions (W×D×H): 1667 × 863 × 949 mm
• Net Weight: 124 kgs
• Gross Weight: 138 kgs
• Noise: 55 dB
• Controller: Microprocessor
• Display: Digital
• Sensor: NTC
• Voltage / Frequency: 220V ±10%, 50/60Hz
• Power: 300 W
• Electric Current: 1.6 A
• Power Consumption: 3.53 kWh/24h
• High / Low Temp Alarm: Yes
• Power Failure Alarm: Yes, 12h
• Sensor Error Alarm: Yes
• Controller Error Alarm: Yes (controller error memory protection)
• Refrigeration Type: Direct Cooling
• Defrost: Manual
• Compressor: CUBIGEL / 1
• Refrigerant: R290 / 75 g
• Door: Foamed Solid Door / 1
• Interior Material: Stainless Steel
• Exterior Material: Coated Steel
• Insulation: PURF (≥100 mm)
• Door Lock: Yes
• Test Hole: 1
• Castors: 4
• Package: Carton box with pallet
• Shipping Size (W×D×H): 1760 × 880 × 1070 mm
