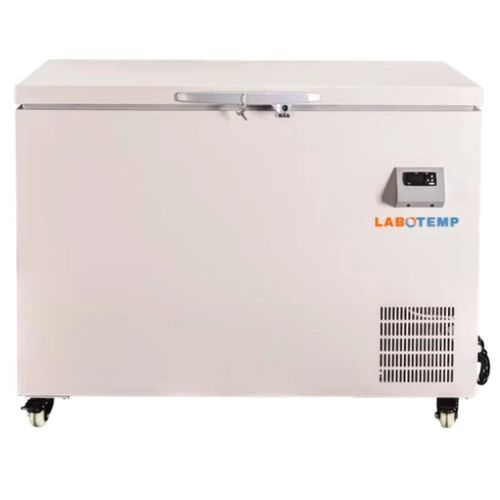

Vaccine freezer LDF-08

for blood plasmalaboratoryfor enzymes

Product overview
Labotemp Laboratory deep freezer LDF-08 provides 220 L capacity and an adjustable temperature range from -10°C to -60°C, engineered for laboratory, medical and research cold storage. The unit incorporates a SECOP (DANFOSS) compressor, Germany-brand EBM condenser fan, and a PTC probe for accurate temperature sensing. Interior surfaces and chamber are stainless steel 304; the exterior is powder-coated steel. A 100 mm high-density foaming insulation layer ensures thermal stability. Electronic temperature control with digital display, audible and visual alarms, caster wheels and a single-compressor independent refrigeration system support safe long-term storage of temperature-sensitive materials.

Why choose LDF-08?

• Safety monitoring: audible and visual alarms provide prompt alerts on temperature excursions.
• Enhanced insulation: 100 mm foaming layer improves cold retention and efficiency.
• Stable ultra-low control: precise regulation across -10°C to -60°C for sensitive samples.
• Durable construction: stainless steel interior and powder-coated exterior for laboratory environments.

Features

• 304 stainless steel inner liner and chamber.
• Electronic temperature control with digital data display.
• 100 mm thick insulation layer for superior temperature stability.
• Equipped with Germany-brand EBM condenser fan for efficient circulation and low noise.
• SECOP (DANFOSS) compressor and PTC probe for reliable low-temperature performance.
• Audible and visual alarm system and caster wheels for mobility.

Applications

• Designed for laboratories, medical facilities and research centers for long-term preservation of vaccines, plasma, biological samples, enzymes and other temperature-sensitive materials.

Technical specifications

• Model: LDF-08
• Capacity: 220 L
• Temperature range: -10°C to -60°C, adjustable
• Compressor: SECOP (DANFOSS)
• Voltage: 220V/50Hz
• Alarm: Audible and visual alarm
• Input power: 400W
• Power consumption: 4.9 kW·h/24h
• Refrigerant: Fluorine-free environmental refrigerant
• Temperature control: Electronic temperature control
• Protection grade: I/B
• Climate type: N
• Refrigeration system: Single-compressor independent refrigeration system
• Temperature display: Digital data display
• Probe: PTC
• Condenser fans: Germany brand EBM
• Exterior material: Powder-coated steel plate
• Interior material: Stainless steel 304
• Liner: Stainless steel 304
• Thickness of foaming layer: 100 mm
• Balance hole: 1 (diameter 18 mm)
• Castors: 4
• Net weight / gross weight: 106 / 143 kg
• External dimensions: 1160 × 765 × 885 mm
• Internal dimensions: 960 × 470 × 595 mm
• Package size: 1230 × 835 × 1055 mm
