Medical sterilizer HZA-01

laboratoryfor sterilization servicesCSSD

Product overview

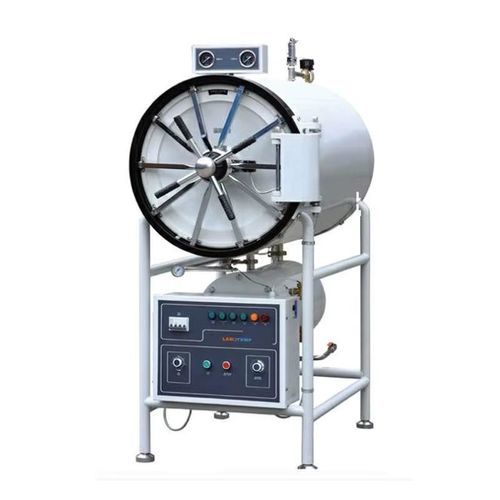

Labotemp Horizontal Autoclave HZA-01 is a horizontal steam sterilizer designed for sterilization of laboratory instruments, culture media, dressings, glassware and compatible industrial components. The cylindrical pressure chamber uses saturated steam at controlled temperature and pressure to inactivate bacteria, viruses and spores. The horizontal layout and 150 L stainless steel chamber permit straightforward loading of bulk items for repeated sterilization cycles.

Key capabilities
Operates up to 134°C with a 150 L stainless steel chamber and working pressure 0.22 MPa. Temperature adjustable 40°C–134°C. Sterilization and drying time adjustable 0–60 minutes. Conforms to applicable ISO and CE standards. Safety functions include over-pressure safety valve and low-water cut-off.

Features

• Uniform chamber heating
• Automatic sterilization programs for simplified operation
• Integrated drying function suitable for dressings
• Automatic over-temperature and over-pressure protection
• Interlocked door: cannot open until chamber pressure ≤ 0.027 MPa; unit will not start if door is not properly closed
• Safety valve opens automatically above 0.24 MPa, releasing steam to the water tank
• Automatic power cut-off, water cut-off and alarm on low-water condition
• Stainless steel sterilization chamber

Applications

• Research & Microbiology Laboratories
  For sterilizing glassware, instruments, culture media, solutions and biological waste
• Healthcare & Medical Facilities
  For compatible dressing materials, surgical instruments and reusable laboratory equipment
• Laboratory Glassware Processing
  Suitable for high-volume processing of bottles, containers and other heat- and moisture-compatible glassware
• Culture Media & Solutions
  For steam sterilization of prepared media and compatible laboratory solutions
• Industrial Sterilization
  For sterilizing larger quantities of compatible components where a horizontal chamber is advantageous

Technical specifications

• Working temperature: 134°C
• Volume: 150 L
• Sterilizing chamber (Ø×L): 440 × 1000 mm
• Sterilization time: 0–60 min
• Working pressure: 0.22 MPa
• Drying time: 0–60 min
• Temperature uniformity: ≤ ±2°C
• Temperature adjustment range: 40°C–134°C
• Power: 9 kW
• Voltage: 380 V, 50 Hz
• Dimensions (L × W × H): 1400 × 600 × 1300 mm
• Transport dimensions: 1550 × 750 × 1850 mm
• Gross weight: 320 kg
• Net weight: 240 kg
