Medical sterilizer HZA-02

clinicallaboratoryfor sterilization services

Product overview

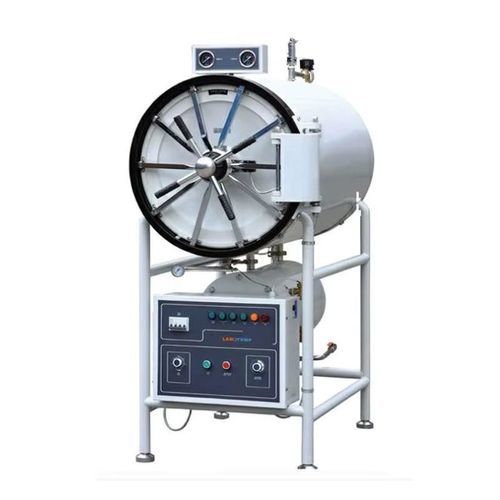

Labotemp Horizontal Autoclave HZA-02 is a horizontal steam pressure sterilizer engineered for reliable sterilization of laboratory instruments, glassware, culture media and medical dressings. The unit uses saturated steam at controlled temperature and pressure to inactivate microorganisms and support contamination control in pharmaceutical, clinical, research and industrial laboratory environments.

Performance and operation
The autoclave features a 280 L stainless-steel chamber (600×1000 mm), operating up to 0.22 MPa and 134°C. Temperature is adjustable from 40°C to 134°C and sterilization and drying cycles are programmable from 0–60 minutes to suit different materials and protocols. The system includes automatic control, integrated drying, and multiple safety interlocks for dependable laboratory operation.

Why choose Labotemp Horizontal Autoclave HZA-02?

• ISO & CE compliance: designed and manufactured to ISO and CE standards for regulated environments.
• Integrated drying function: reduces turnaround time for instruments and dressings.
• Trusted manufacturer: Labotemp provides consistent performance and long service life.

Features

• ISO/CE certified
• Automatic sterilization programs with simple controls
• Drying function suitable for dressings and glassware
• Over-temperature and over-pressure protection
• Door interlock: cannot open until chamber pressure is zero
• Start inhibited if door is not fully closed
• Safety valve for automatic pressure relief
• Controlled steam discharge to water tank when required
• Automatic power cut-off, water shortage cut-off and alarm
• Stainless-steel sterilizing chamber

Applications

• Sterilization of laboratory glassware, instruments, culture media, solutions, biological waste, dressings and large-volume equipment in research, microbiology, pharmaceutical and healthcare labs

Specifications

• Model: HZA-02
• Working temperature: 134°C
• Volume: 280 L
• Power: 12 kW
• Voltage: 380 V 50 Hz
• Sterilizing chamber size: 600×1000 mm
• Sterilization time: 0–60 min
• Working pressure: 0.22 MPa
• Drying time: 0–60 min
• Temperature uniformity: ≤ ±2°C
• Temperature adjustment range: 40°C–134°C
• Overall dimensions (mm): 1400×770×1780
• Transport dimensions (mm): 1680×920×2100
• Gross weight: 465 kg
• Net weight: 365 kg
