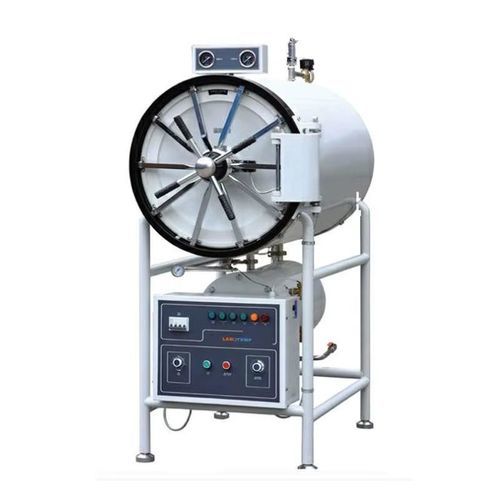

Hospital sterilizer HZA-03

laboratoryfor the pharmaceutical industryfor sterilization services

Overview Labotemp Horizontal Autoclave HZA-03 is a horizontal steam sterilizer designed for laboratory and clinical use. It sterilizes instruments, glassware, culture media and dressings using saturated steam at controlled temperature and pressure. The horizontal cylindrical chamber and front-loading door facilitate handling of large items and reproducible sterilization cycles, suitable for hospitals, pharmaceutical units, research and testing laboratories.

Key benefits

• CE and ISO compliance for regulated sterilization processes
• Automatic sterilization cycles with integrated drying function to reduce handling time
• Large 400 L chamber to process high-volume loads

Features

• 400 L capacity with 700×1100 mm sterilizing chamber
• Automatic sterilization control with programmable cycles (0–60 min)
• Integrated drying function for dressings and instruments
• Over-temperature and over-pressure automatic protection
• Interlock prevents door opening until chamber pressure is zero
• 0.27 MPa interlock ensures machine will not start if door is not properly closed
• Safety valve opens automatically when internal pressure exceeds set limit
• Steam condensate returns to water tank at defined pressure
• Automatic shutdown, low-water cut-off and alarm for water shortage
• Stainless steel sterilization chamber

Applications

• Sterilization of laboratory glassware and surgical instruments
• Sterilization of culture media, solutions and biological waste
• Sterilization and drying of dressings and large-volume laboratory equipment

Technical specifications

• Working temperature: 134°C
• Volume: 400 L
• Power: 18 kW
• Voltage: 380 V, 50 Hz
• Sterilizing chamber dimensions: 700 × 1100 mm
• Sterilization time: 0–60 min (programmable)
• Working pressure: 0.22 MPa
• Drying time: 0–60 min (programmable)
• Temperature accuracy: ≤ ±2°C
• Temperature range: 40°C – 134°C
• Dimensions (W×D×H): 1430 × 880 × 1830 mm
• Transport dimensions (W×D×H): 1600 × 1050 × 2100 mm
• Gross weight: 530 kg
• Net weight: 420 kg
