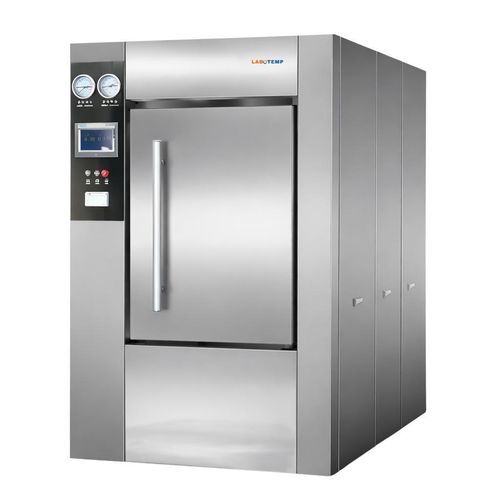

Laboratory sterilizer HZA-05

for sterilization servicesCSSDmicrobiology

Overview
Labotemp Horizontal Steam Autoclave HZA-05 is a horizontal steam sterilizer intended for reliable sterilization of laboratory instruments, surgical tools, textiles, culture media, liquids and pharmaceutical materials. The unit features a 360 L jacketed chamber in SS304 stainless steel, an airtight pneumatic sealing system, an integrated saturated steam generator and an HMI touch-screen with PLC control to support repeatable, traceable sterilization cycles for hospital, pharmaceutical and laboratory use.

Operating principle & safety
The HZA-05 uses vacuum-assisted saturated steam sterilization to improve air removal and steam penetration. Operating range: 105°C–138°C, design temperature 144°C. The system includes automatic double-door electric locking, multi-level protections for over-temperature and over-pressure, high-precision temperature and pressure sensors, a low-noise water-ring vacuum pump and an integrated printer for process records.

Why choose HZA-05?

• 360 L chamber capacity: adapts to high-throughput sterilization workflows
• Vacuum-assisted steam cycles: enhanced sterilization of porous loads and liquids
• Integrated HMI touchscreen and PLC: programmable cycles and traceable reporting

Key Features

• 360 L large jacketed chamber (SS304)
• Horizontal rectangular chamber with integrated jacket for uniform heat retention and improved drying
• Fully automatic double-door system with electric safety interlock
• Pneumatic door sealing with high‑temperature silicone gasket (resistant up to 250°C)
• SS304 chamber and piping system with sanitary connections
• Built-in saturated steam generator ensuring stable steam supply
• Advanced HMI touch-screen with programmable cycle management and parameter setting
• Multiple sterilization programs: textiles, instruments, liquids, Bowie‑Dick, leak test
• High‑precision temperature and pressure monitoring and recording
• Water‑ring vacuum pump: low noise, high vacuum efficiency
• Integrated sterilization report printer for traceability
• Multi-level safety protections: over‑temperature, over‑pressure and operational alarms

Applications

• Hospital CSSD: sterilization of surgical instruments, textiles, dressings and laboratory glassware
• Pharmaceutical production and QC: sterilization of materials, media and production equipment
• Research & microbiology labs: sterilization of instruments, culture media and compatible laboratory waste
• Medical colleges and healthcare facilities: high-throughput clinical and educational sterilization needs
• GMP areas: validated cycles with cycle monitoring, report printing and traceability
• Industrial applications: sterilization of compatible components and textiles

Standard Accessories

• Printer
• One internal trolley
• One external transport trolley

Optional Accessories

• Air compressor
• Water treatment unit

Technical specifications

• Capacity: 360 L
• Working temperature: 105–138°C
• Design temperature: 144°C
• Design pressure: -0.1–0.3 MPa
• Rated working pressure: 0.245 MPa
• Vacuum: -0.086 MPa
• Temperature equilibrium: ≤ ±2.0°C
• Cycle time per batch: about 40–70 minutes (dependant on program and load)
• Chamber material: SS304
• Inner surface finish: 0.4 μm
• Door type: automatic double door
• Seal: high‑temperature silicone, up to 250°C
• Jacket material: SS304
• Air filter: ≤ 0.22 μm aseptic filtration
• Heat insulation: aluminum silicate, T = 30 mm
• Sterilization rack: SUS304 stainless steel
• Outer panel: carbon steel with spray coating
• Voltage: 380 V, 50 Hz
• Power: 2 + 24 kW
• Water pressure: 0.1–0.2 MPa
• Compressed air pressure: 0.4–0.7 MPa
• Steam pressure: 0.3–0.7 MPa
• Steam consumption: ≤ 25 kg
• Water consumption: ≤ 200 kg
• Pump: low flow, high lift
• Steam generator: built-in saturated steam generator
• Touch screen: human–machine interactive program selection & parameter setting
• Printer: output of sterilization report
• Temperature sensor: high precision
• Pressure sensor: high precision
• Pressure gauges: Class 1.6, stainless steel dial
• Overall dimensions (L × W × H): 1250 × 1300 × 1900 mm
• Chamber size (L × W × H): 600 × 600 × 1000 mm
• Net weight: 1080 kg
• Gross weight: 1150 kg
