Pulse vacuum sterilizer LPS-102

laboratoryfor sterilization servicesCSSD

Product overview

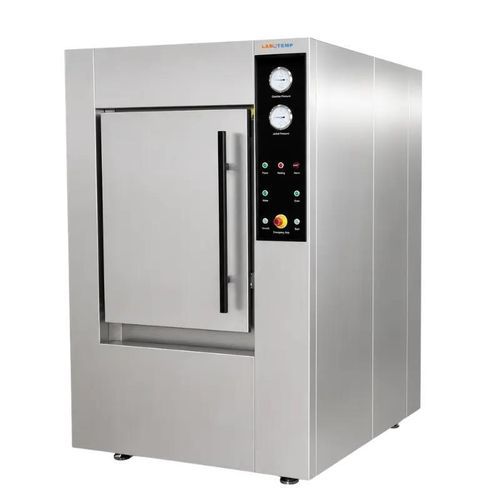

Labotemp Pulse Vacuum Sterilizer LPS-102 features a 250 L SS304 jacketed chamber, precise temperature control up to 139°C and pulse vacuum capability to -96 kPa. The pulse vacuum cycle improves steam penetration into porous loads and enables efficient vacuum drying for faster post-sterilization handling. The jacketed chamber ensures thermal stability and uniform steam distribution for repeatable sterilization results in hospitals, CSSD, pharmaceutical production, biotechnology and research laboratories.

Safety and operation
The unit includes an automatic sliding door with inflatable seal, intelligent vacuum control and multiple protections such as over-pressure alarms, low-water protection, automatic shutdown and vacuum-leak monitoring. PLC touch-screen control provides programmable cycles, real-time monitoring and process traceability. Energy-efficient steam usage and the SS304 chamber construction support continuous operation in high-throughput medical and laboratory environments.

Key benefits

• PLC touch-screen control for automated cycle management and real-time monitoring
• Multi-level safety system with alarms, interlocks and vacuum protection
• Efficient vacuum drying to improve post-sterilization drying and workflow throughput

Features

• Automated pulse vacuum operation for improved steam penetration and cycle consistency
• Uniform heat distribution and precise temperature control for reliable sterilization
• Fast chamber evacuation and effective post-cycle drying
• Industrial-grade SS304 chamber with smooth internal surface for easier cleaning
• Multi-stage pressure management and multiple protection systems
• User-configurable operating parameters and programmable sterilization cycles
• Integrated operational diagnostics and multi-level alarm system
• Continuous-duty design suitable for high-volume sterilization workflows
• Flexible power supply options: 380 V / 220 V, 50 Hz

Applications

• Hospitals & CSSD: High-volume sterilization of surgical instruments, dressing packs, textiles, rubber materials and heat-resistant medical devices
• Pharmaceutical production: Sterilization of compatible production materials, containers, laboratory instruments and glassware
• Biotechnology & research labs: Sterilization of laboratory equipment, glassware and reusable instruments requiring vacuum-assisted steam penetration
• Microbiology & QA labs: Repeatable, traceable sterilization cycles with automated monitoring and vacuum drying
• High-throughput sterilization: 250 L chamber suited to batch processing and consistent drying of larger compatible loads

Technical specifications

• Capacity: 250 L
• Maximum operating temperature: 139°C
• Design temperature: 150°C
• Maximum operating pressure: 0.25 MPa
• Chamber design pressure: -0.1 / 0.3 MPa
• Jacket design pressure: 0.3 MPa
• Generator design pressure: 1.0 MPa
• Temperature accuracy: 0.1°C
• Pressure accuracy: 0.1 kPa
• Sterilization temperature control accuracy: ±1°C
• Temperature uniformity: ±1°C
• Negative pressure pulsating vacuum: -80–0 kPa
• Pressure pulsation range: -80–80 kPa
• Positive pressure pulse count: 0–9 times
• Maximum vacuum: -96 kPa
• Power supply: 380 V, 220 V / 50 Hz
• Power rating: 2 kW + (20 kW)
• Chamber relief valve: 0.28 MPa
• Jacket relief valve: 0.28 MPa
• Steam consumption: 16 kg/cycle
• Water consumption: 120 kg/cycle
• Chamber size (W × H × D): 550 × 550 × 845 mm
• Overall dimensions (L × W × H): 1150 × 1255 × 1800 mm
• Package size: 1450 × 1350 × 2200 mm
• Package size (transfer vehicles): 1450 × 1150 × 1020 mm
• Net weight: 795 kg
• Gross weight: 883 kg
