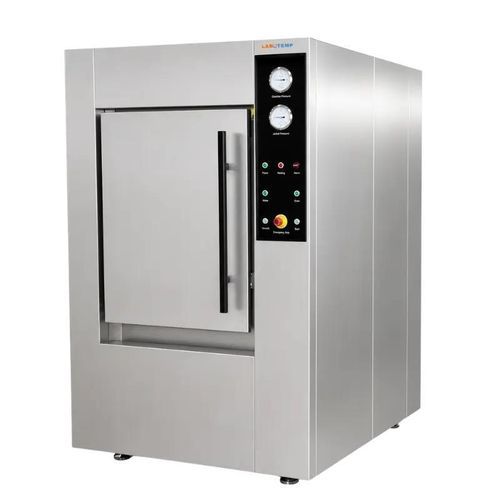

Pulse vacuum sterilizer LPS-103

laboratoryCSSDfor biomedical research

Product Overview
Labotemp Pulse Vacuum Sterilizer LPS-103 is a laboratory and medical autoclave engineered for steam sterilization in hospitals, CSSD, pharmaceutical production, research laboratories and biotechnology facilities. With a 450 L rectangular jacketed chamber, pulse vacuum air removal and precise temperature control up to 139°C, the LPS-103 delivers reliable steam penetration and reduced residual moisture for wrapped, porous and complex loads.

Control, Safety & Operation
The LPS-103 integrates a Siemens PLC with a color touch-screen interface for automatic cycle management, parameter monitoring and process visualization. Safety and protection functions include over‑pressure alarms, vacuum leak monitoring, automatic condensate drainage control and flash vacuum drying to improve drying performance and energy efficiency. Optional remote monitoring supports predictive maintenance and secure data access.

Key Benefits

• Pulse vacuum cycles enhance steam penetration for wrapped sets and complex instruments
• PLC automation with color touch-screen enables repeatable, documented sterilization cycles
• Flash vacuum drying reduces residual moisture and shortens post‑sterilization handling

Features

• Color touch-screen interface
• Vertical sliding door for space-efficient operation
• Programmable sterilization modes for flexible processing
• Pressure pulse technology for improved air removal
• Built-in process recording and data output
• Optional remote monitoring and maintenance support
• Automatic condensate temperature management
• Hygienic sanitary piping design for simplified cleaning

Applications

• Hospitals & CSSD
  High-volume steam sterilization of surgical instruments, textile packs, glassware, rubber goods and heat‑resistant medical items
• Pharmaceutical Manufacturing
  Sterilization of compatible production materials, lab instruments, containers and liquid media requiring controlled steam processing
• Biotechnology & Research Laboratories
  Sterilization of reusable lab equipment, glassware, media and instruments used in life‑science workflows
• Microbiology & QA Labs
  Validated vacuum‑assisted cycles for culture media, labware and experimental workflows requiring traceable records
• Industrial & High‑Volume Sterilization
  450 L chamber supports bulk loads where throughput and consistent batch performance are essential

Specifications

• Capacity: 450 L
• Maximum operating temperature: 139°C
• Design temperature: 150°C
• Maximum operating pressure: 0.25 MPa
• Chamber design pressure: -0.1 / 0.3 MPa
• Jacket design pressure: 0.3 MPa
• Generator design pressure: 1.0 MPa
• Temperature accuracy: 0.1°C
• Pressure accuracy: 0.1 kPa
• Sterilization temperature control accuracy: ±1°C
• Temperature uniformity: ±1°C
• Negative pressure pulsating vacuum: -80–0 kPa
• Pressure pulsation range: -80–80 kPa
• Positive pressure pulse: 0–9 times
• Maximum vacuum: -96 kPa
• Power supply: 380 V, 220 V, 50 Hz
• Power rating: 2 kW + (30 kW)
• Chamber relief valve: 0.28 MPa
• Jacket relief valve: 0.28 MPa
• Steam consumption: 22 kg/cycle
• Water consumption: 180 kg/cycle
• Chamber size (W × H × D): 652 × 690 × 1000 mm
• Overall dimensions (L × W × H): 1355 × 1200 × 2050 mm
• Package size: 1500 × 1550 × 2200 mm
• Package size (transfer vehicles): 1450 × 1150 × 1050 mm
• Net weight: 1000 kg
• Gross weight: 1150 kg
