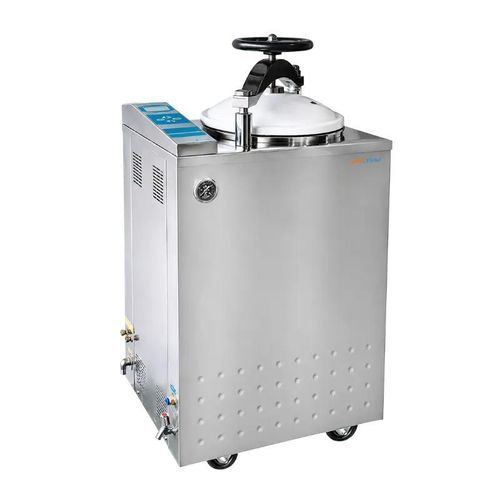

Hospital sterilizer LPS-106

for researchfor healthcare facilitiesfor biomedical research

Product overview
Labotemp Vertical pulse vacuum sterilizer LPS-106 is a compact steam autoclave designed for routine sterilization in hospitals, clinics, research and clinical laboratories, pharmaceutical and biotechnology facilities, and academic institutions. It features a 50 L stainless steel chamber, maximum working temperature up to 134°C and working pressure 0.22 MPa, suitable for sterilizing surgical instruments, laboratory glassware, culture media, textiles, rubber goods, liquids and hollow medical devices. The triple pulse vacuum system removes trapped air before sterilization to ensure effective steam penetration. Microcomputer control with a digital display continuously monitors temperature, pressure, vacuum level and cycle status for accurate, repeatable operation.

Design and operation
The LPS-106 integrates automatic water filling, triple pulse vacuum, immersion heating, timed sterilization, draining, exhaust and vacuum drying in a fully automated cycle to support validated sterilization workflows. Key operational elements include a self-inflating door seal, 0.22 μm bacterial air filter, multi-pulse vacuum drying, four preset programs with user-programmable settings, audible cycle completion alarm and a durable stainless steel chamber supplied with double sterilization baskets. Its compact footprint and efficient heating make it suitable for space-limited medical and laboratory environments.

Key features

• Triple pulse vacuum for removal of residual air and improved steam penetration.
• Microcomputer-controlled operation with touch-type keys and digital display for monitoring temperature, pressure, vacuum rate and cycle status.
• Fully automatic sterilization cycle including vacuum drying, automatic water inlet, draining and exhaust.
• Four preset programs with user-programmable settings for routine clinical and laboratory loads.
• 0.22 μm bacterial air filter to help maintain sterile chamber conditions.
• Quick-opening handwheel door with self-expanding sealing system.
• High-efficiency immersion heating for rapid and uniform temperature rise.
• Steam-water internal circulation for cleaner, energy-efficient operation.
• Automatic cycle completion with audible alarm notification.
• Durable stainless steel chamber supplied with double sterilization baskets.

Applications

• Hospitals & healthcare facilities
  Routine sterilization of compatible surgical instruments, textiles, rubber goods, laboratory glassware and other heat- and moisture-resistant items.
• Dental clinics
  Sterilization of dental handpieces and reusable dental instruments compatible with steam sterilization.
• Pharmaceutical laboratories
  Sterilization of glassware, instruments and culture media used in testing and small-scale preparation.
• Microbiology laboratories
  Processing of culture media, labware and tools requiring validated steam penetration and air removal.
• Research & academic labs
  Routine sterilization of instruments, glassware and reusable materials in research workflows.
• Clinical & diagnostic laboratories
  Automated pulse vacuum sterilization for instruments and materials used in diagnostic procedures.
• Veterinary facilities
  Sterilization of surgical and laboratory items used in veterinary care and diagnostics.
• Pharmaceutical & biotechnology facilities
  Support for repeatable steam sterilization of compatible lab and small production materials.
• Compact sterilization needs
  Vertical 50 L configuration suited to facilities needing vacuum-assisted steam penetration and vacuum drying with a small footprint.

Technical specifications

• Model: LPS-106
• Capacity: 50 L
• Chamber size: Ø340 × 550 mm
• Overall dimensions (W × D × H): 660 × 460 × 1160 mm
• Working temperature: up to 134°C
• Working pressure: 0.22 MPa
• Maximum working pressure: 0.23 MPa
• Temperature uniformity: ≤ ±1°C
• Temperature adjustment range: 0–134°C
• Timer range: 0–99 min
• Power supply: AC 220 V, 50 Hz
• Power consumption: 3.2 + 1.6 kW
• Control: Microcomputer-controlled with touch-type keys
• Display: Digital display for temperature, pressure, sterilization time, vacuum rate and cycle status
• Sterilization process: automatic water inlet, pulse vacuum, heating, sterilization, draining, exhausting and vacuum drying
• Programs: 4 preset programs with user-programmable settings
• Net weight: 114 kg
• Gross weight: 137–140 kg (packaging varies)
• Package size: 740 × 550 × 1270 mm
