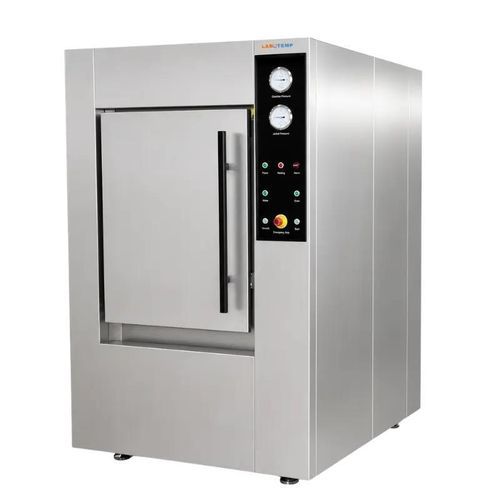

Laboratory sterilizer LPS-104

for sterilization servicesCSSDfor research

Product overview
The LPS-104 pulse vacuum sterilizer is a high-capacity steam sterilizer with a rectangular 0.8 m³ (800 L) chamber, maximum operating temperature 139°C and maximum vacuum -96 kPa. It uses pulse vacuum cycles with saturated steam to improve steam penetration in porous and lumen loads, and integrates flash vacuum drying to reduce residual moisture and shorten turnaround times.

Design & operation
The unit features a reinforced chamber and jacket for improved thermal efficiency, an inflatable silicone sealing system and an automatic vertical sliding door with safety interlock for secure, airtight operation. Flash vacuum drying and controlled drainage temperature reduce post-sterilization moisture. Built-in protections include over-pressure alarms, vacuum-leak testing and supply monitoring for steam, water and power.

Automation & control
Siemens PLC control with a color touch-screen provides programmable automatic cycle management, real-time process monitoring and sterilization record logging to support validated, traceable sterilization workflows in clinical and laboratory environments.

Why choose LPS-104

• Pulse vacuum sterilization for reliable steam penetration of complex and porous loads
• High-capacity 800 L chamber for large clinical and laboratory batches
• Siemens PLC automation with color touch-screen for programmable and traceable cycles
• Integrated flash vacuum drying to minimize residual moisture and accelerate processing

Features

• Siemens PLC color touch-screen control
• Automatic vertical sliding door with safety interlock
• Pulse vacuum sterilization modes for improved steam penetration
• Flash vacuum drying to reduce residual moisture
• Vacuum leak test and alarm protection
• Multiple sterilization programs for varied applications
• Inflatable silicone chamber sealing system
• Automatic drainage temperature control
• Supply monitoring and alarm system for steam, water and power

Applications

• Hospitals and CSSD: high-volume sterilization of surgical instruments, textiles, dressings, glassware, rubber items and lumen devices
• Pharmaceutical and biotechnology labs: sterilization of instruments, glassware, media and production materials
• Research and microbiology labs: vacuum-assisted steam penetration for validated workflows
• Medical device processing and batch sterilization where programmable, traceable cycles are required

Technical specifications

• Capacity: 800 L (0.8 m³)
• Maximum operating temperature: 139°C
• Design temperature: 150°C
• Maximum operating pressure: 0.25 MPa
• Maximum vacuum: -96 kPa
• Positive pressure pulses: 0–9 times
• Across pressure pulsation: -80–80 kPa
• Negative pressure pulsating vacuum: -80–0 kPa
• Temperature uniformity: ±1°C
• Sterilization temperature control accuracy: ±1°C
• Pressure accuracy: 0.1 kPa
• Temperature accuracy: 0.1°C
• Generator design pressure: 1.0 MPa
• Jacket design pressure: 0.3 MPa
• Chamber design pressure: -0.1 / 0.3 MPa
• Power supply: 380 V / 220 V, 50 Hz
• Power: 3.5 kW + (48 kW)
• Jacket relief valve: 0.28 MPa
• Chamber relief valve: 0.28 MPa
• Water consumption: 400 kg/cycle
• Steam consumption: 52 kg/cycle
• Chamber size (W × H × D): 652 × 690 × 1800 mm
• Overall dimensions (L × W × H): 2150 × 1400 × 1950 mm
• Package size: 2360 × 1560 × 2350 mm
• Transfer package size: 2200 × 1110 × 1110 mm
• Net weight: 1250 kg
• Gross weight: 1460 kg
