Thermostatic test chamber THC-01

climatichumiditytemperature

Overview

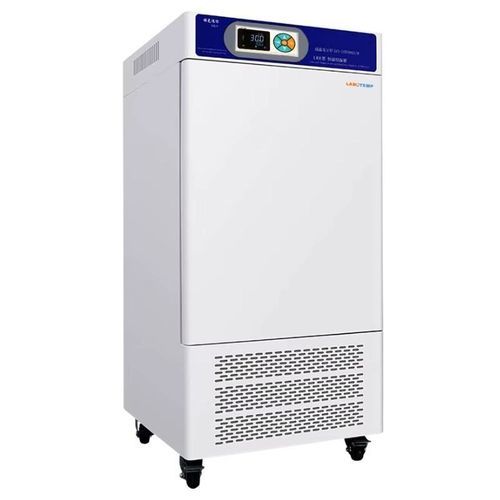

Labotemp Temperature and Humidity Chamber THC-01 is a precision environmental chamber engineered to generate stable, repeatable temperature and humidity profiles for laboratory and production testing. Standard temperature range: 0–65°C (high-temperature variants up to 90°C). Humidity control: 40–95% RH with uniform distribution and advanced PID regulation for tight control (±0.1°C temperature accuracy).

Usage
Suitable for stability testing, environmental conditioning and controlled-humidity testing in sectors such as pharmaceuticals, biotechnology, electronics, agriculture, water analysis and industrial quality control.

Why Choose THC-01

• Designed by environmental-chamber specialists for controlled test conditions
• ISO and CE compliant to meet international test and safety requirements
• Advanced PID control for precise, repeatable temperature and humidity management

Features

• Compact 50 L usable volume
• Precise PID control of temperature and humidity
• Balanced refrigeration system with low fluctuation and auto-defrost
• Environmentally friendly, fluorine-free refrigerant
• SUS304 stainless steel inner chamber with adjustable shelves
• Built-in intelligent humidification with automatic water refill
• Uniform air circulation for consistent conditions
• LCD controller with RS485 interface and over-temperature alarm
• Double-door design with interior lighting
• Branded compressor for reliable long-term operation

Optional Accessories

• Printer
• Test port (test hole)
• Communication software

Applications

• Pharmaceutical and biotechnology stability testing
• Environmental testing and component qualification in electronics
• Agricultural studies and water analysis
• Industrial product testing, QA and R&D

Technical specifications

• Temperature Range: 0–65°C (H ~90°C for high-temperature models)
• Volume: 50 L
• Power: 0.5 kW
• Voltage: 220 V, 50 Hz
• Inner Size (H×W×D): 450 × 350 × 320 mm
• Overall Dimension (H×W×D): 970 × 490 × 580 mm
• Accuracy: ±0.1°C
• Temperature Fluctuation: ±0.5°C
• Humidity Range: 40%–95% RH
• Humidity Fluctuation: ±2%
• Timing Range: 0–999 M/H
• Packing Size (H×W×D): 1070 × 570 × 640 mm
• Net Weight: 60 kg
• Gross Weight: 90 kg
