Climate chamber THC-06

humiditytemperaturefor medicine stability

Overview

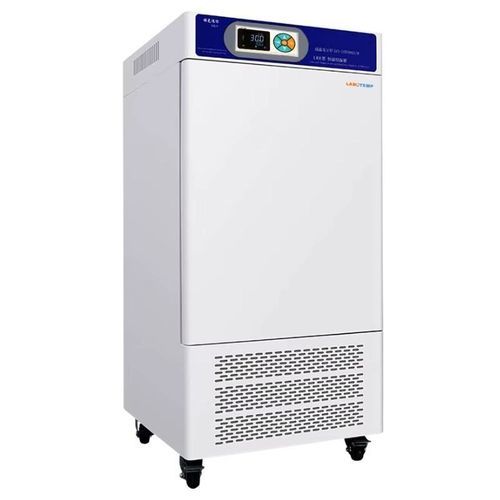

Labotemp Temperature and Humidity Chamber THC-06 is engineered for precise environmental control in high-volume laboratory and industrial testing. With an 800 L usable volume, it regulates temperature from 0–65°C (sterilization support up to ~90°C) and humidity from 40%–95% RH. The chamber integrates an advanced PID controller, a balanced refrigeration system and an intelligent humidification unit with automatic water refill. Fluorine-free refrigerant improves efficiency and environmental safety. The unit is ISO- and CE-compliant and suitable for laboratories, research centers and industrial facilities.

Key Benefits

• Large-capacity chamber for bulk samples and stability testing (800 L).
• Sterilization support up to ~90°C for high-temperature processes.
• Programmable PID control with RS485 for accurate monitoring and alarm integration.
• Environmentally friendly fluorine-free refrigerant and balanced refrigeration with auto-defrost.

Features

• 800 L usable volume.
• Precise PID control for tight temperature and humidity regulation.
• Balanced refrigeration with low fluctuation and automatic defrost.
• Fluorine-free refrigerant.
• SUS304 stainless-steel inner chamber with adjustable shelves.
• Built-in intelligent humidification with automatic water refill.
• Uniform air circulation for stable environmental conditions.
• LCD controller with RS485 interface and over-temperature alarm.
• Double-door design with interior lighting.
• Brand compressor for long-term reliable operation.

Applications

• Scientific research and environmental testing.
• Epidemic prevention and pharmaceutical stability studies.
• Agriculture, livestock and aquatic research.
• Bioengineering and water analysis.
• Industrial product testing and stability studies.

Optional Accessories

• Printer.
• Test port for probes or cables.
• Communication software.

Technical Specifications

• Temperature range: 0–65°C (sterilization up to ~90°C)
• Usable volume: 800 L
• Power: 3.3 kW
• Voltage: 220 V
• Inner size (H×W×D): 1200 × 1050 × 650 mm
• Overall dimension (H×W×D): 1845 × 1195 × 985 mm
• Temperature stability (volatility): ±1%
• Humidity range: 40%–95% RH
• Humidity fluctuation: ±3%
• Timing range: 0–999 M/H
• Packing size (H×W×D): 1970 × 1280 × 1070 mm
• Net weight: 200 kg
• Packed/shipping weight: 220 kg
• Gross weight: 300 kg
