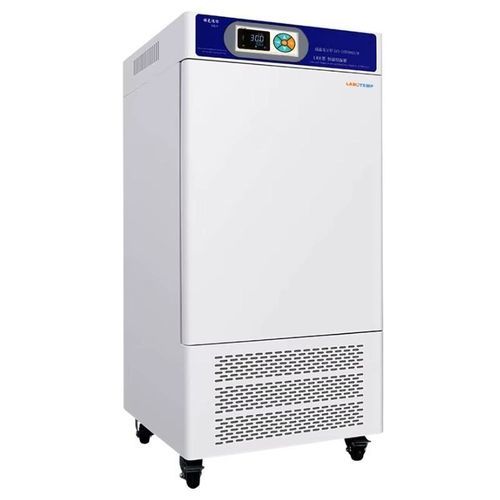

Thermostatic test chamber THC-04

climatichumiditytemperature

Overview
The Labotemp Temperature and Humidity Chamber THC-04 provides accurate and repeatable environmental control for temperature and humidity testing. It supports temperature from 0°C to 65°C and humidity control from 40% to 95% RH, with fluorine-free refrigeration, automatic defrost and an intelligent humidification system with automatic water refill to reduce fluctuation and ensure reliable operation.

Key Advantages

• Engineered for precise environmental simulation by experienced chamber manufacturers
• ISO and CE compliance for international testing standards
• Stable operation through advanced refrigeration and humidification design

Features

• RS485 data link for external monitoring and integration
• Precise PID control for accurate temperature and humidity regulation
• Balanced refrigeration with low fluctuation and automatic defrost
• Eco-friendly fluorine-free refrigerant
• SUS304 stainless steel inner chamber with adjustable shelves
• Intelligent humidification with automatic water refill
• Uniform air circulation to ensure stable conditions
• LCD controller with RS485 interface and over-temperature alarm
• Double-door design with interior lighting
• Reliable branded compressor for long-term operation

Applications

• Scientific and laboratory testing
• Environmental protection testing
• Epidemiology and pharmaceutical stability tests
• Agriculture, livestock and aquaculture research
• Biotechnology and water analysis
• Industrial product qualification and reliability testing

Specifications (table)
Temperature Range: 0–65°C
Volume: 250 L
Power: 1.0 kW
Voltage: 220 V
Inner Size (H×W×D): 1000×550×450 mm
Overall Dimension (H×W×D): 1550×690×660 mm
Accuracy: ±0.1°C
Temperature Fluctuation: ±0.5%
Humidity Range: 40%–95% RH
Humidity Fluctuation: ±2%
Timing Range: 0–999 M/H
Packing Size (H×W×D): 1670×770×740 mm
Net Weight: 120 kg
Shipping Weight: 135 kg
Gross Weight: 145 kg

Optional Accessories

• Printer
• Test hole (port)

Technical specifications

• Model: THC-04
• Temperature Range: 0–65°C
• Humidity Range: 40%–95% RH
• Volume: 250 L
• Power: 1.0 kW
• Voltage: 220 V
• Inner Size (H×W×D): 1000×550×450 mm
• Overall Dimension (H×W×D): 1550×690×660 mm
• Accuracy: ±0.1°C
• Humidity Fluctuation: ±2%
• Temperature Fluctuation: ±0.5%
• Timing Range: 0–999 M/H
• Net Weight: 120 kg; Shipping Weight: 135 kg; Gross Weight: 145 kg
• Construction: SUS304 stainless steel inner chamber with adjustable shelves
• Control & Connectivity: Precise PID control, LCD controller with RS485 interface
• Refrigeration & Humidification: Fluorine-free refrigerant, balanced refrigeration, auto-defrost, intelligent humidification with automatic water refill
• Safety & Design: Over-temperature protection/alarm, uniform air circulation, double-door design with interior lighting
