Climate chamber THC-05

humiditytemperatureenvironmental

Overview

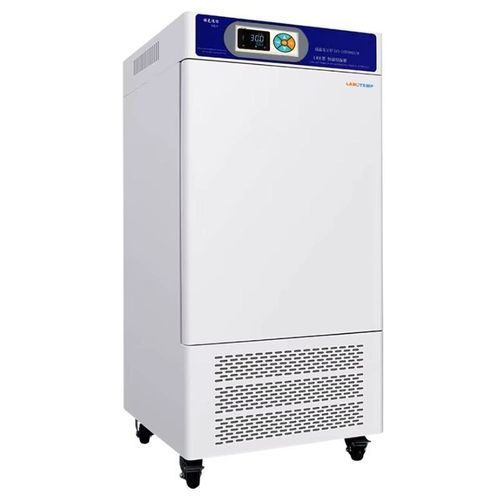

Labotemp Temperature and Humidity Chamber THC-05 is an industrial-grade environmental test chamber designed to deliver precise and stable temperature and humidity conditions for laboratory and production testing. The chamber operates from 0°C to 65°C (H~90°C) with humidity control from 40% to 95% RH. The SUS304 mirror-finish stainless steel interior, adjustable shelving and integrated test port support flexible sample arrangement and sensor connections.

Why choose THC-05

• Advanced safety protection: multi-layer safety system with over-temperature alarm for secure operation
• Eco-efficient cooling: fluorine-free refrigerant for compliant, energy-aware performance
• Uniform air circulation: optimized airflow for consistent temperature and humidity throughout the chamber

Key features

• Auto water refill and built-in intelligent humidification for continuous humidity control
• Precise PID control for accurate temperature and humidity regulation
• Balanced refrigeration with low fluctuation and automatic defrost
• Eco-friendly fluorine-free refrigerant
• SUS304 stainless steel inner chamber with adjustable shelves
• Uniform air circulation for stable environmental conditions
• LCD controller with RS485 interface and over-temperature alarm
• Double-door design with interior lighting
• Brand compressor for long-term reliable operation

Applications

• Scientific and R&D laboratories
• Environmental testing and validation
• Pharmaceutical and drug stability testing
• Agriculture, livestock and aquaculture research
• Bioengineering and biological studies
• Water analysis laboratories
• Industrial product testing and quality control

Optional accessories

• Printer
• Test port (additional feed-through)
• Communication software

Specifications (table)
Temperature range: 0–65°C (H~90°C)
Humidity range: 40%–95% RH
Volume: 350 L
Power: 1.6 kW
Voltage: 220 V
Inner size (H×W×D): 1000×580×600 mm
Overall dimension (H×W×D): 1550×720×890 mm
Accuracy: ±0.1°C
Temperature fluctuation: ±0.5°C
Humidity fluctuation: ±2%
Timing range: 0–999 M/H
Packing size (H×W×D): 1670×800×980 mm
Net weight: 140 kg
Shipping weight: 155 kg
Gross weight: 170 kg

Technical specifications

• Temperature control: 0°C to 65°C
• Humidity control: 40%–95% RH
• Chamber volume: 350 L
• Power consumption: 1.6 kW
• Supply voltage: 220 V
• Inner dimensions (H×W×D): 1000×580×600 mm
• Overall dimensions (H×W×D): 1550×720×890 mm
• Temperature accuracy: ±0.1°C
• Temperature stability/variation: ±0.5°C
• Humidity stability: ±2% RH
• Programmable timer: 0–999 M/H
• Packing dimensions (H×W×D): 1670×800×980 mm
• Net weight: 140 kg
• Shipping weight: 155 kg
• Gross weight: 170 kg
